Truss Gantry Crane
Key Information
Lifting Capacity:
3–20 tons
Span
8–35 meters (customizable)
Lifting Height
6m, 9m, 18m (customizable)
Working Class
A3, A4, A5
Rated Voltage
380V, 50Hz
Control Methods
Pendant control, wireless remote, or cabin operation
Overview
Truss Gantry Crane
The truss gantry crane is commonly used for lifting heavy loads in areas such as port handling, workshop logistics, warehouse storage, and construction sites.
Key Features
Intro

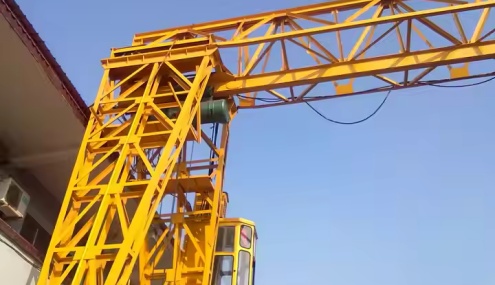

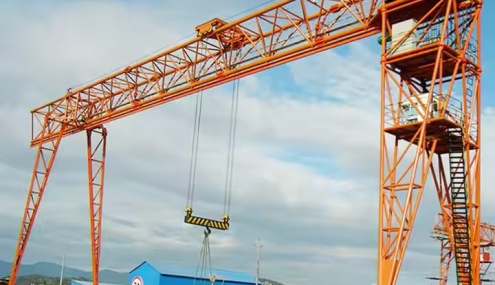

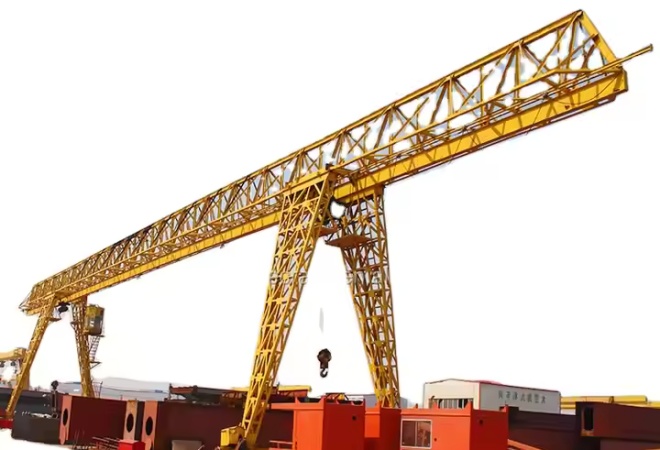

The electric hoist truss gantry crane is a rail-mounted lifting device primarily composed of a gantry frame (main beam, supporting legs, bottom beam), hoisting mechanism, traveling mechanism, and electrical control system.
The hoisting mechanism uses an electric hoist that travels along the I-beam flange at the bottom of the main girder. The gantry frame adopts a truss structure, which provides a lightweight design with excellent wind resistance. This makes it especially suitable for outdoor use in factories, mines, freight yards, and warehouses.
It is widely favored for its light self-weight, high stability, and ease of installation and maintenance.
advantages
- Lightweight Structure: Truss design minimizes weight and wheel load while ensuring performance.
- Enhanced Safety: Equipped with wind alarms, anti-axle-break, and anti-skewing protection systems.
- Modular & Easy to Dismantle: Flexible leg design allows for easy relocation and reassembly at new sites.
Faqs
How can I choose right cranes?
We have 24-hour online customer service to provide you with professional consulting services and help you choose the right crane according to your working conditions.
Are your cranes customizable?
Yes, we support customization to meet specific lifting requirements. Factors such as lifting capacity, span length, lifting height, and control options can be tailored to suit your needs of the industry or application. Customization ensures optimal performance and efficiency.
I have low headroom in my workshop, is it possible to install a crane in it?
We have special products for low headroom workshop, our engineer can give the best design according to your dimensions.
What kind of package for Hoist or Cranes?
Hoists and Electricals packed in fumigation wooden box. Main beams covered by woven plastic cloth.
When the main girder is too long, how to delivery by container?
The main girder will be divided into different pieces, each part’s length is within 11.8m. When client receive the goods, just connect them with high strength bolt is okay.
How can you provide after-sale service?
This is a common concern for customers. We provide one-stop service, from delivery, installation to after-sales. We will have online customer service ready to solve your problems at any time, we also provide after-sales documentation support, such as operation manuals, maintenance manuals, etc. If the problem still not be solved, we can send our engineers to your site.
Can we get on-site guided installation service?
Of course, we also have a professional team of technicians responsible for equipment installation and training guidance, and we can provide you with on-site installation and testing guidance.
