L-Type Single Girder Gantry Crane
Key Information
Lifting Capacity:
5–50 tons
Span:
16–30 meters
Working Environment Temperature:
-20°C to +40°C
Working Class:
A5
Lifting Height:
9–13 meters
Overview

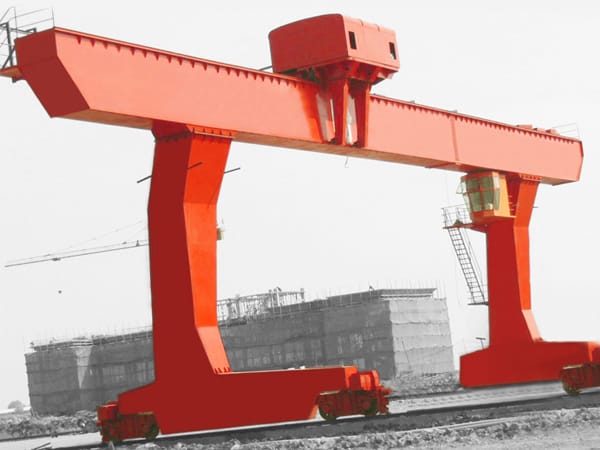

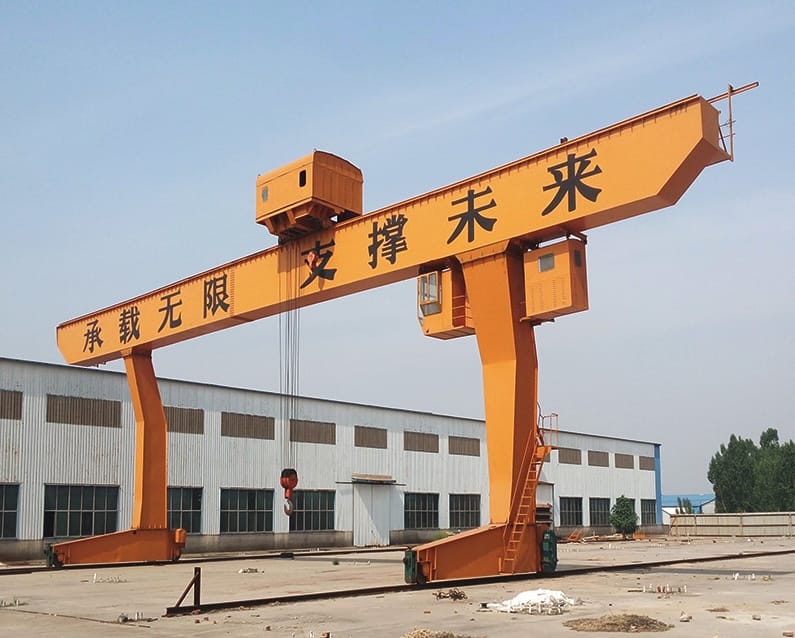

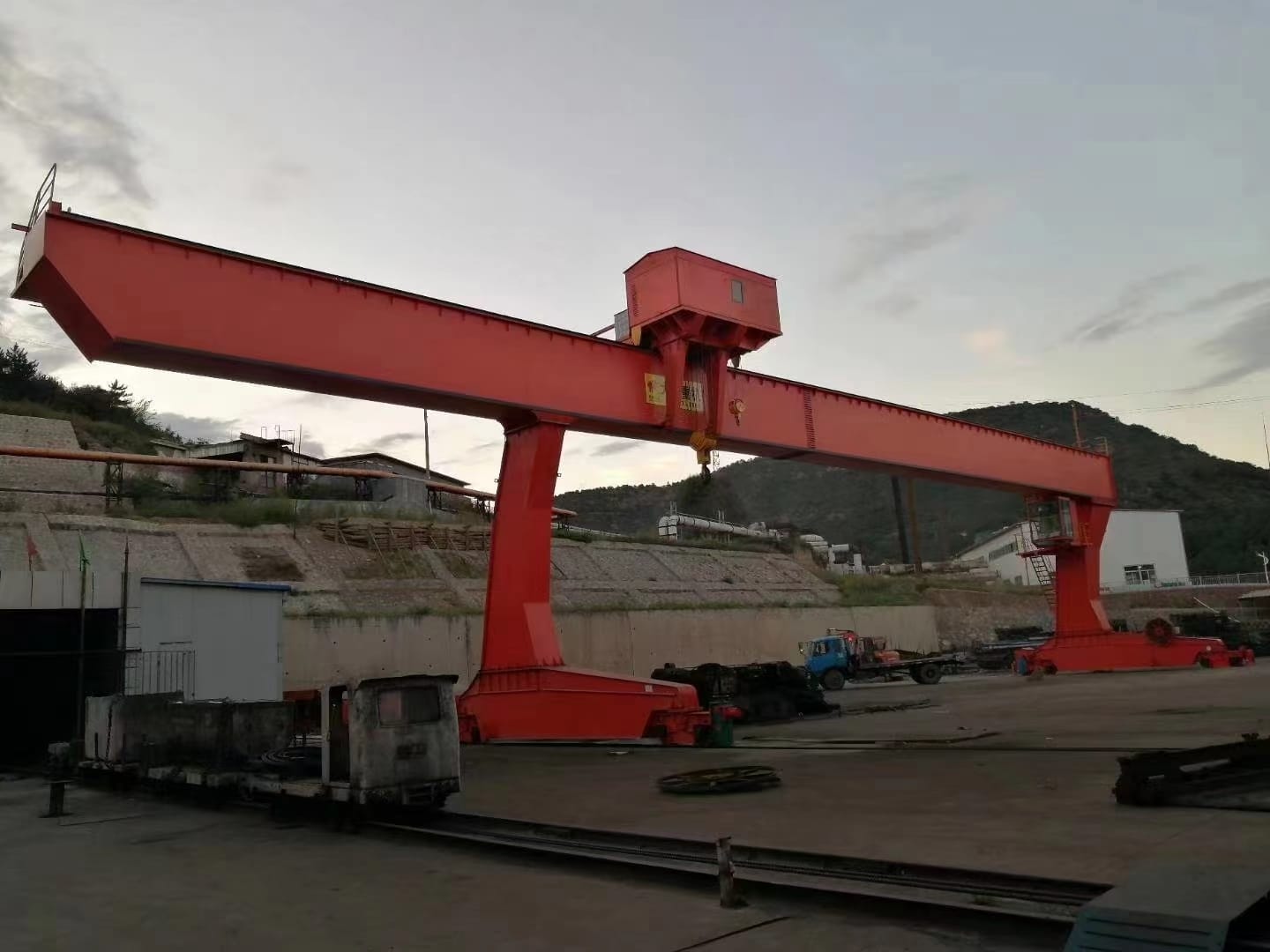

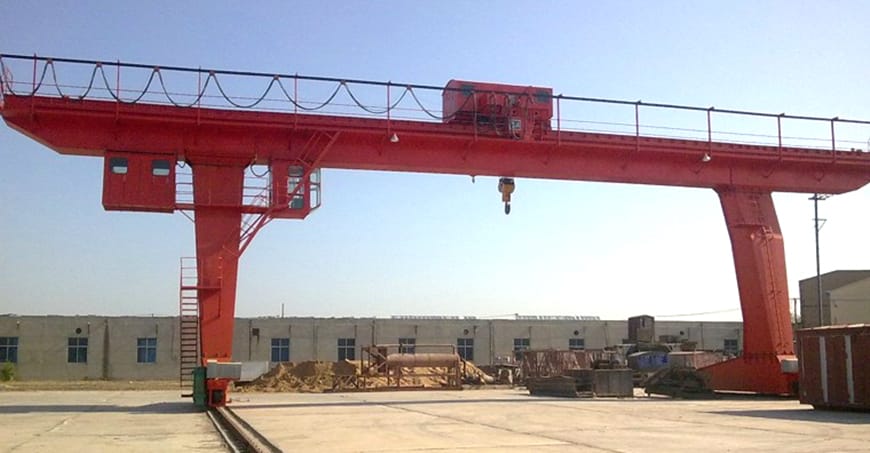

L-Type Single Girder Gantry Crane
The L-type single girder gantry crane is an economical and efficient lifting solution designed for medium-duty lifting with moderate span requirements. It is widely used in ports, freight yards, and logistics terminals.
Key Features
Intro
The L-type single girder gantry crane is a practical and flexible lifting device designed for handling medium-sized loads. Its compact structure and user-friendly operation make it ideal for a variety of applications.
The main girder features an L-shaped cross-section, offering high strength and rigidity while reducing self-weight to improve overall performance. The hoisting mechanism typically uses CD/MD wire rope electric hoists, although electric trolleys can also be used for increased capacity and functionality.
The hoist travels transversely along the main girder, allowing for precise material positioning. One side of the crane uses a rigid leg connected firmly to the girder, while the opposite side features a flexible leg that adjusts to rail deviations or uneven ground.
This crane is suitable for operations requiring customized lifting heights and spans, and is widely adopted in factories, warehouses, and workshops.
advantages
- Compact Design: L-type structure saves space, especially in height- or area-constrained environments
- High Flexibility: Customizable span, height, and load capacity to suit various working conditions
- Stability & Reliability: Constructed with high-quality steel and advanced welding technology for superior durability
Faqs
How can I choose right cranes?
We have 24-hour online customer service to provide you with professional consulting services and help you choose the right crane according to your working conditions.
Are your cranes customizable?
Yes, we support customization to meet specific lifting requirements. Factors such as lifting capacity, span length, lifting height, and control options can be tailored to suit your needs of the industry or application. Customization ensures optimal performance and efficiency.
I have low headroom in my workshop, is it possible to install a crane in it?
We have special products for low headroom workshop, our engineer can give the best design according to your dimensions.
What kind of package for Hoist or Cranes?
Hoists and Electricals packed in fumigation wooden box. Main beams covered by woven plastic cloth.
When the main girder is too long, how to delivery by container?
The main girder will be divided into different pieces, each part’s length is within 11.8m. When client receive the goods, just connect them with high strength bolt is okay.
How can you provide after-sale service?
This is a common concern for customers. We provide one-stop service, from delivery, installation to after-sales. We will have online customer service ready to solve your problems at any time, we also provide after-sales documentation support, such as operation manuals, maintenance manuals, etc. If the problem still not be solved, we can send our engineers to your site.
Can we get on-site guided installation service?
Of course, we also have a professional team of technicians responsible for equipment installation and training guidance, and we can provide you with on-site installation and testing guidance.
