Semi-Gantry Crane
Key Information
Lifting Capacity:
0.5–80tons
Lifting Height:
6meters
Span:
5–20meters
Working Class:
M4–M6
Protection Grade:
IP55
Working Temperature:
-20°C to +40°C
Overview

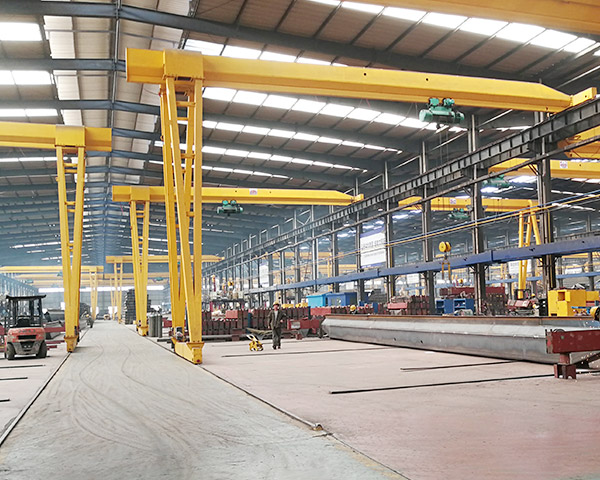

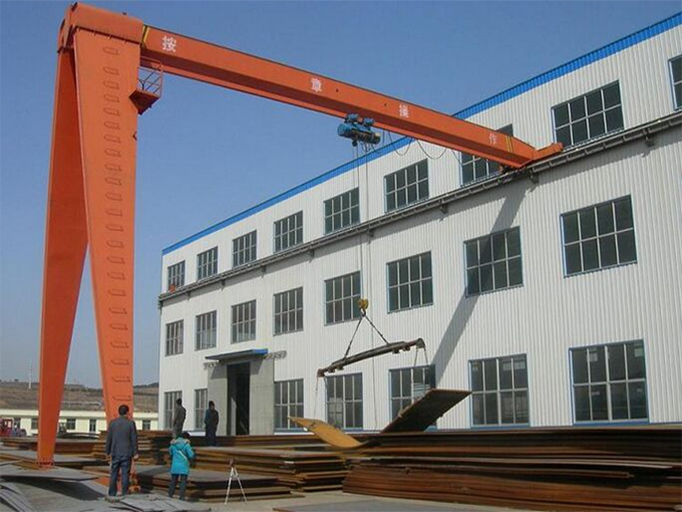

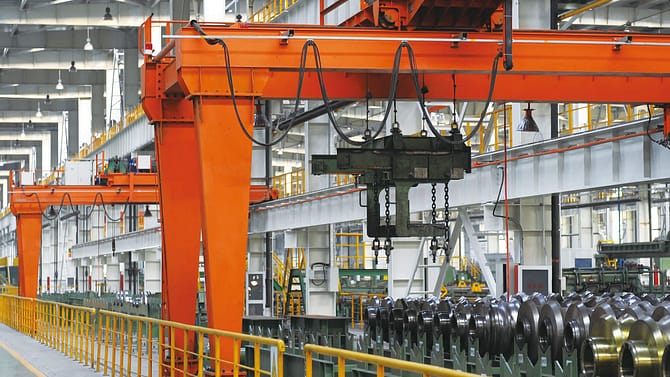

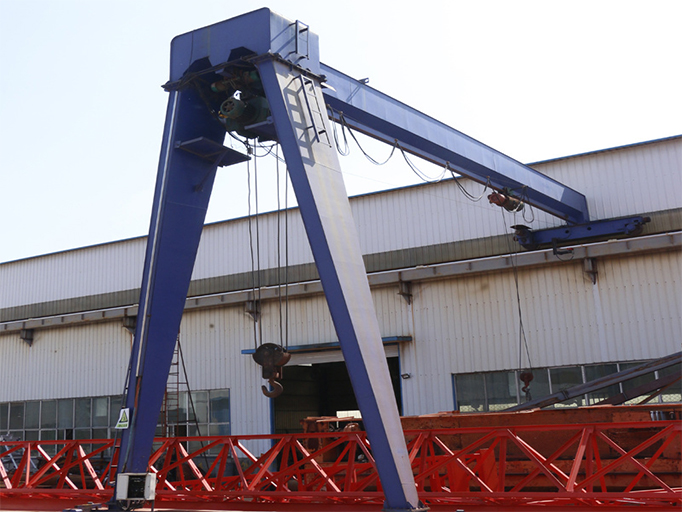

Semi-Gantry Crane
The semi gantry crane is a conventional type of crane, widely used for loading and unloading operations in open yards and warehouses.
Key Features
Intro
The semi gantry crane features a specially designed structure that adapts to a wide range of lifting applications. It can be configured as a single girder or double girder crane, with an asymmetric connection design: one side is supported by a gantry frame running on ground rails, while the other side is supported by an end carriage traveling on an elevated runway beam.
Compared to a standard full gantry crane, it eliminates one supporting leg, which reduces overall cost and increases the effective working space—especially beneficial in workshops with spatial constraints.
This crane is suitable for both indoor and outdoor applications. Various lifting tools can be mounted under the hook, such as grab buckets, electromagnets, and more.
advantages
- Compact structure with high rigidity
- Excellent performance
- Smooth starting and stopping
- Safe and reliable travel with strong lateral load resistance
- Low noise and environmentally friendly
- Flexible installation, easy operation and maintenance
- Energy-saving design
- High interchangeability of components
- Low initial investment
Faqs
How can I choose right cranes?
We have 24-hour online customer service to provide you with professional consulting services and help you choose the right crane according to your working conditions.
Are your cranes customizable?
Yes, we support customization to meet specific lifting requirements. Factors such as lifting capacity, span length, lifting height, and control options can be tailored to suit your needs of the industry or application. Customization ensures optimal performance and efficiency.
I have low headroom in my workshop, is it possible to install a crane in it?
We have special products for low headroom workshop, our engineer can give the best design according to your dimensions.
What kind of package for Hoist or Cranes?
Hoists and Electricals packed in fumigation wooden box. Main beams covered by woven plastic cloth.
When the main girder is too long, how to delivery by container?
The main girder will be divided into different pieces, each part’s length is within 11.8m. When client receive the goods, just connect them with high strength bolt is okay.
How can you provide after-sale service?
This is a common concern for customers. We provide one-stop service, from delivery, installation to after-sales. We will have online customer service ready to solve your problems at any time, we also provide after-sales documentation support, such as operation manuals, maintenance manuals, etc. If the problem still not be solved, we can send our engineers to your site.
Can we get on-site guided installation service?
Of course, we also have a professional team of technicians responsible for equipment installation and training guidance, and we can provide you with on-site installation and testing guidance.
Related Products
Related products
-
Gantry Crane
Rail Mounted Container Gantry Crane
-
Gantry Crane
L-Type Single Girder Gantry Crane
-
Gantry Crane
Double Girder Gantry Crane
-
Gantry Crane

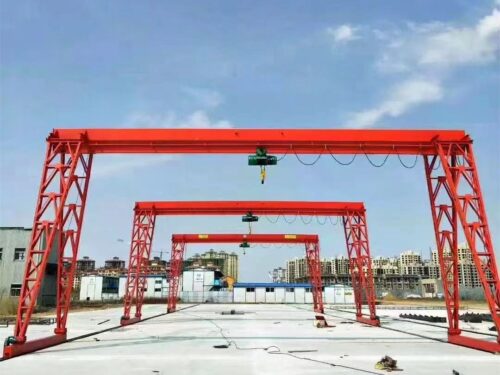

Single Girder Gantry Crane
