Double Girder Gantry Crane
Key Information
• Lifting Capacity
Up to 500 tons
• Lifting Height
Up to 30 meters (customizable)
• Span:
3 to 35 meters
• Working Temperature
-20°C to +40°C
• Working Class:
A5–A7
Overview

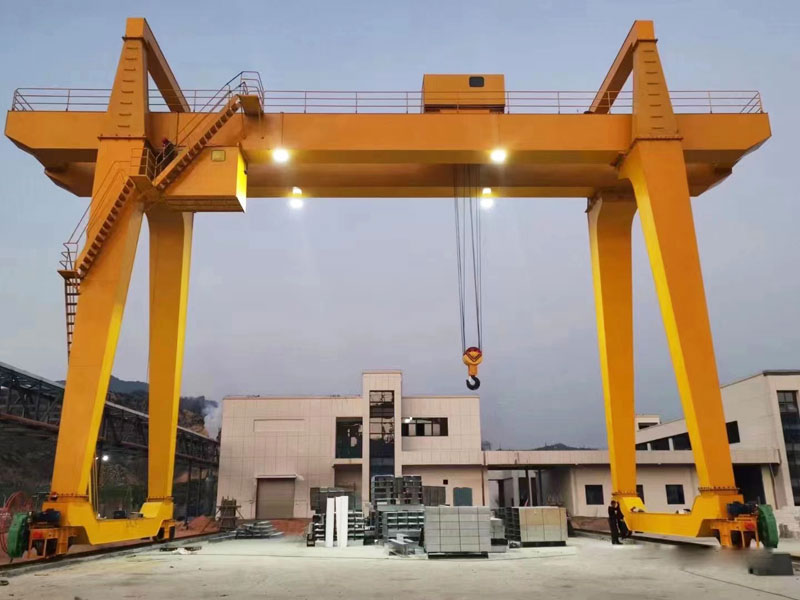

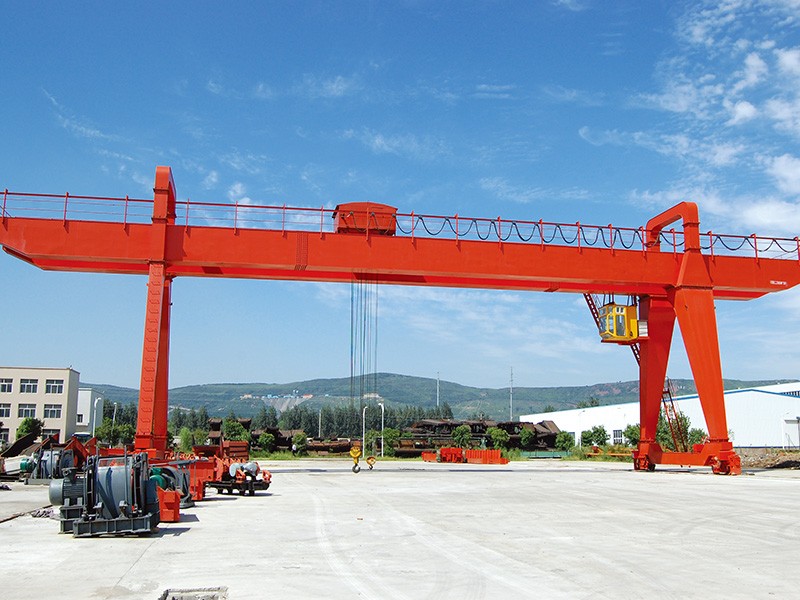

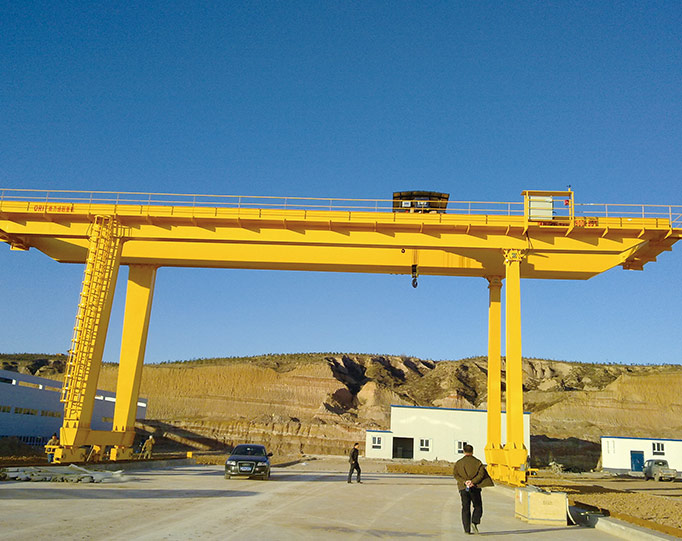

Double Girder Gantry Crane
Featuring a large span and excellent stability, the double girder gantry crane is ideal for heavy-duty lifting applications such as steel plants, construction sites, logistics terminals, and shipyards.
Key Features
Intro
The double girder gantry crane adopts a modular and parameterized design for its hoisting mechanism, which utilizes a universal wire rope electric hoist—offering stable performance, durability, and high safety.
The trolley running mechanism uses either vertical variable-speed drives or integrated three-in-one drive units, controlled by a universal speed control system.
The crane can be classified by different structures and operation modes:
- By boom type: Without cantilever, single cantilever, double cantilever
- By structure type: Box girder, truss girder, or box-truss combination
- By control method: Ground control, cab control, or wireless remote control
advantages
- Stable performance
- High durability
- Reliable and safe operation
- Easy installation
- Wide range of applications
Faqs
How can I choose right cranes?
We have 24-hour online customer service to provide you with professional consulting services and help you choose the right crane according to your working conditions.
Are your cranes customizable?
Yes, we support customization to meet specific lifting requirements. Factors such as lifting capacity, span length, lifting height, and control options can be tailored to suit your needs of the industry or application. Customization ensures optimal performance and efficiency.
I have low headroom in my workshop, is it possible to install a crane in it?
We have special products for low headroom workshop, our engineer can give the best design according to your dimensions.
What kind of package for Hoist or Cranes?
Hoists and Electricals packed in fumigation wooden box. Main beams covered by woven plastic cloth.
When the main girder is too long, how to delivery by container?
The main girder will be divided into different pieces, each part’s length is within 11.8m. When client receive the goods, just connect them with high strength bolt is okay.
How can you provide after-sale service?
This is a common concern for customers. We provide one-stop service, from delivery, installation to after-sales. We will have online customer service ready to solve your problems at any time, we also provide after-sales documentation support, such as operation manuals, maintenance manuals, etc. If the problem still not be solved, we can send our engineers to your site.
Can we get on-site guided installation service?
Of course, we also have a professional team of technicians responsible for equipment installation and training guidance, and we can provide you with on-site installation and testing guidance.
