In industrial material handling, both overhead cranes and gantry cranes are widely used across warehouses, factories, shipyards, construction sites, and more. But for international buyers, the question often arises:
“What’s the difference between an overhead crane and a gantry crane?”
“Which one is right for my project?”
This article breaks down the key differences between these two crane types in terms of structure, installation, application, cost, and performance, to help you make the right purchasing decision.
1. Overview: What Are Overhead and Gantry Cranes?
| Type | Chinese Name | English Name | Definition |

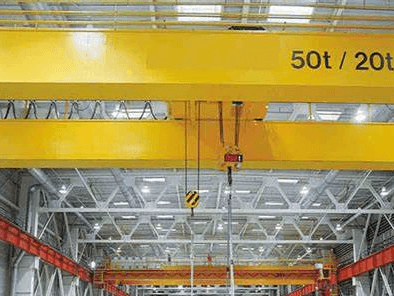

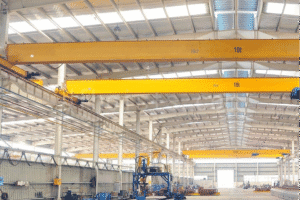

| 桥式起重机 | Overhead Crane / Bridge Crane | Installed on elevated runway beams inside a facility; trolley runs along the main beam | |

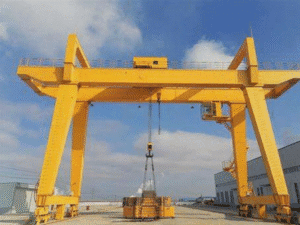

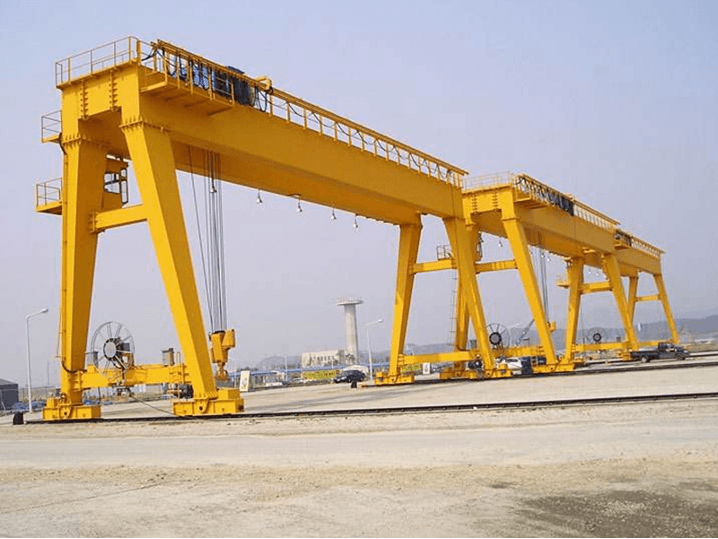

| 龙门起重机 | Gantry Crane | Similar lifting structure, but supported by legs on the ground; does not require building support |
2. Structural Differences
| Feature | Overhead Crane | Gantry Crane |
| Installation | Mounted on runway beams in the building | Independent support structure with legs on ground |
| Support | Depends on building structure | Self-supporting |
| Rail | Runs on beams fixed to workshop columns | Runs on ground rails or rubber tires |
| Civil Work | Requires embedded rails and strong foundations | Less dependence on building design |
3. Application Scenarios
| Type | Best For | Highlights |
| Overhead Crane | Indoor workshops, warehouses, assembly lines | High space utilization, precise lifting |
| Gantry Crane | Outdoor yards, shipyards, ports, large construction sites | Strong wind resistance, flexible installation, great for wide spaces |
4. Performance Comparison
| Metric | Overhead Crane | Gantry Crane |
| Span | Medium span, suitable for standard workshops | Capable of large spans, ideal for wide areas |
| Lifting Capacity | Customizable, typically 5t–100t | Ranges from small (5t) to ultra-heavy-duty (500t) |
| Lifting Height | Limited by building height | Leg height customizable to site conditions |
| Mobility | Fixed to building rails | Mobile options with rubber tires (RTG type) available |
5. Cost & Maintenance Considerations
| Item | Overhead Crane | Gantry Crane |
| Equipment Cost | Relatively lower | Slightly higher for same capacity |
| Civil Work | Requires structural rails and beams | Can reduce building structure costs |
| Installation | Requires accurate factory construction | Flexible and quick deployment on site |
| Maintenance | Centralized indoors, easier access | Outdoor use needs extra anti-corrosion protection |
6. How to Choose?
Here’s a quick decision guide:
- ✅ Have existing factory runway beams? Need cost efficiency? → Go for Overhead Crane
- ✅ Working outdoors? Need independent structure or temporary setup? → Choose Gantry Crane
- ✅ High lifting precision, frequent use indoors? → Overhead crane is ideal
- ✅ Need large span, heavy lifting, or movable operation area? → Gantry crane is more flexible
