Intelligent Articulating Arm Lifting Crane
Key Information
Lifting Capacity
80kg ~ 600kg
Swing Radius:
2.5m ~ 4m
Lifting Height:
1.75m ~ 3.5m
Maximum Lifting Speed (Handle Mode):
No-load: 7.5 ~ 40m/min | Full-load: 6.8 ~ 30m/min
Maximum Lifting Speed (Float Mode):
No-load: 6.75 ~ 36m/min | Full-load: 6.08 ~ 27m/min
Rated Power:
0.75kW ~ 2kW
Overview
Intelligent Articulating Arm Lifting Crane
Ideal for automotive assembly, machining, warehouse stacking, mold/tool changeovers, equipment maintenance, repetitive lifting tasks, component assembly, and general mechanical manufacturing.
Key Features
Intro
The intelligent articulating arm lifting crane is a high-end light-duty lifting solution that integrates intelligent control systems with a servo motor drive and high-precision planetary gear reducer. It delivers outstanding performance, high efficiency, reliable safety, and supports advanced automation and customization.

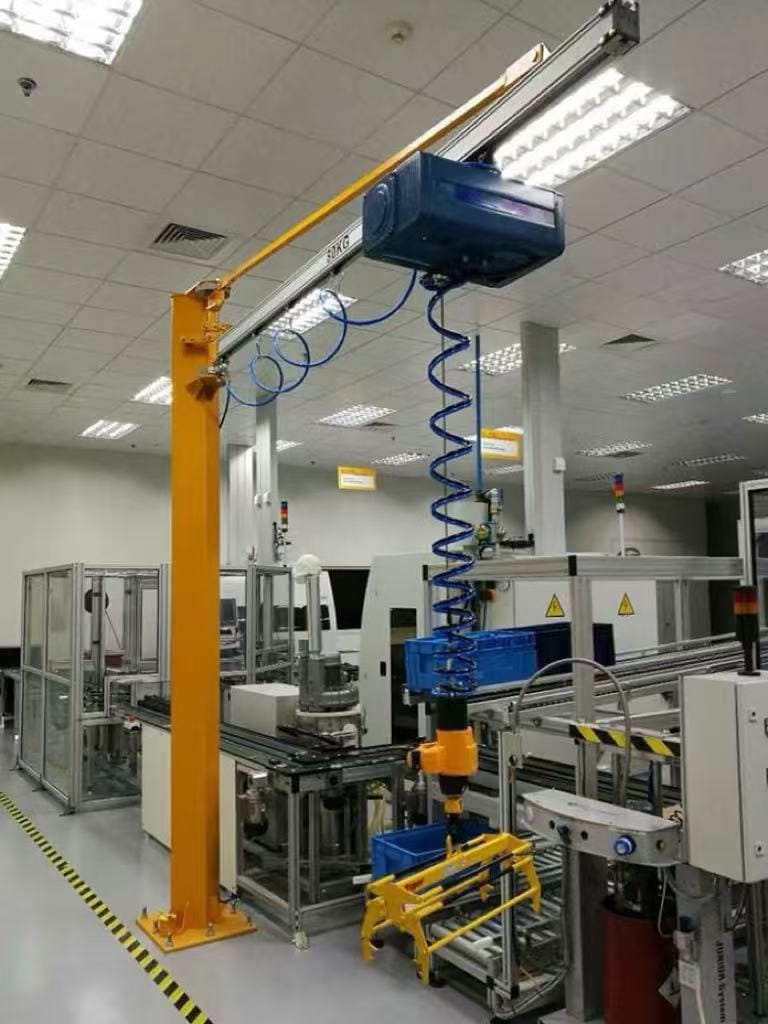

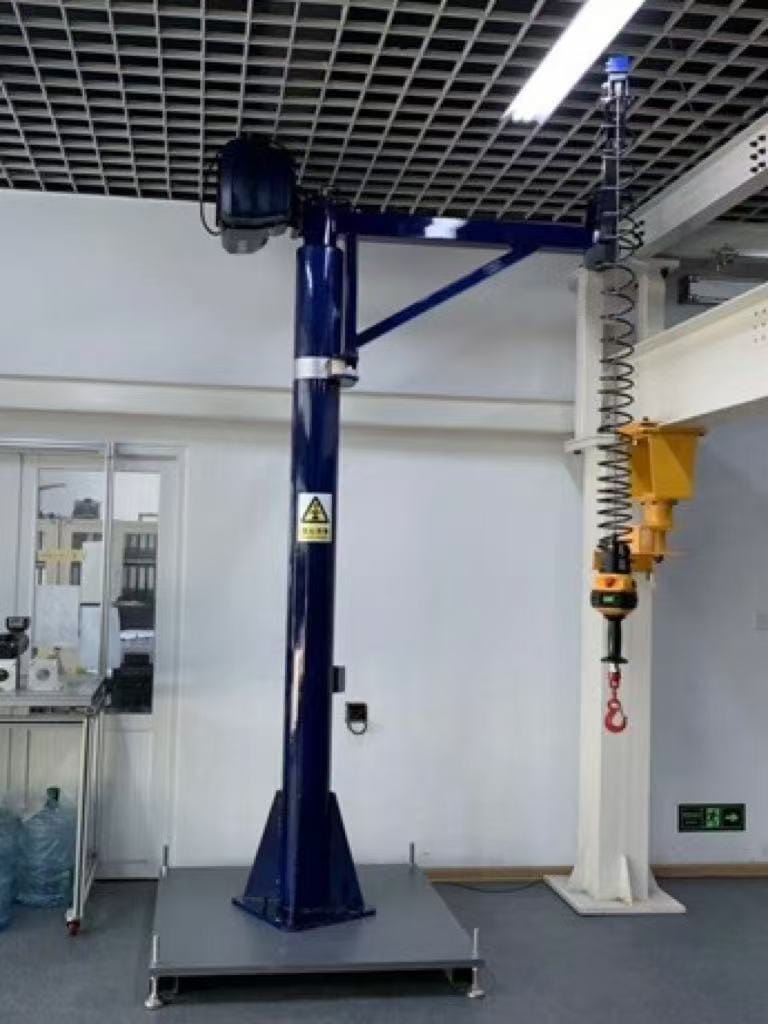

The crane consists of a column, main arm, secondary arm, and a smart servo-driven electric hoist. The main arm can rotate around the column, while the secondary arm rotates independently, offering wide operational coverage. It supports seamless switching between “handle mode” and “float mode” for flexible operation.
The crane is compatible with various end-effectors such as hooks, clamps, and suction cups. It also supports multiple control interfaces, including coaxial pressure handles, sliding handles, full-touch handles, stepless speed handles, and wireless remote controls. Custom functionality can be added through expansion ports, enabling tailored solutions for diverse applications.
advantages
🔹 Modular design for easy installation and maintenance-free operation
🔹 Dual operation modes – handle and float – for flexible usage
🔹 Smooth lifting with low noise, suitable for demanding environments
🔹 Dual limit protection system ensures reliable and safe operation
🔹 Multiple control options with excellent system compatibility
🔹 Advanced human-machine interaction with scalable functionality
🔹 Minimal hook blind spots and wide coverage range
🔹 Integrated slewing and hoist movement for high handling efficiency
🔹 Precise control of lifting points for fast and accurate positioning
🔹 High-duty rating, adjustable speed, and quick response
Faqs
How can I choose right cranes?
We have 24-hour online customer service to provide you with professional consulting services and help you choose the right crane according to your working conditions.
Are your cranes customizable?
Yes, we support customization to meet specific lifting requirements. Factors such as lifting capacity, span length, lifting height, and control options can be tailored to suit your needs of the industry or application. Customization ensures optimal performance and efficiency.
I have low headroom in my workshop, is it possible to install a crane in it?
We have special products for low headroom workshop, our engineer can give the best design according to your dimensions.
What kind of package for Hoist or Cranes?
Hoists and Electricals packed in fumigation wooden box. Main beams covered by woven plastic cloth.
When the main girder is too long, how to delivery by container?
The main girder will be divided into different pieces, each part’s length is within 11.8m. When client receive the goods, just connect them with high strength bolt is okay.
How can you provide after-sale service?
This is a common concern for customers. We provide one-stop service, from delivery, installation to after-sales. We will have online customer service ready to solve your problems at any time, we also provide after-sales documentation support, such as operation manuals, maintenance manuals, etc. If the problem still not be solved, we can send our engineers to your site.
Can we get on-site guided installation service?
Of course, we also have a professional team of technicians responsible for equipment installation and training guidance, and we can provide you with on-site installation and testing guidance.
