Column-Type Jib Crane
Key Information
Lifting Capacity
1.25t / 5t (customizable)
Lifting Height
4.5m / 5m
Effective Working Radius
5m / 5.5m
Slewing Angle
180° / 270° / 360° (as required)
Overview

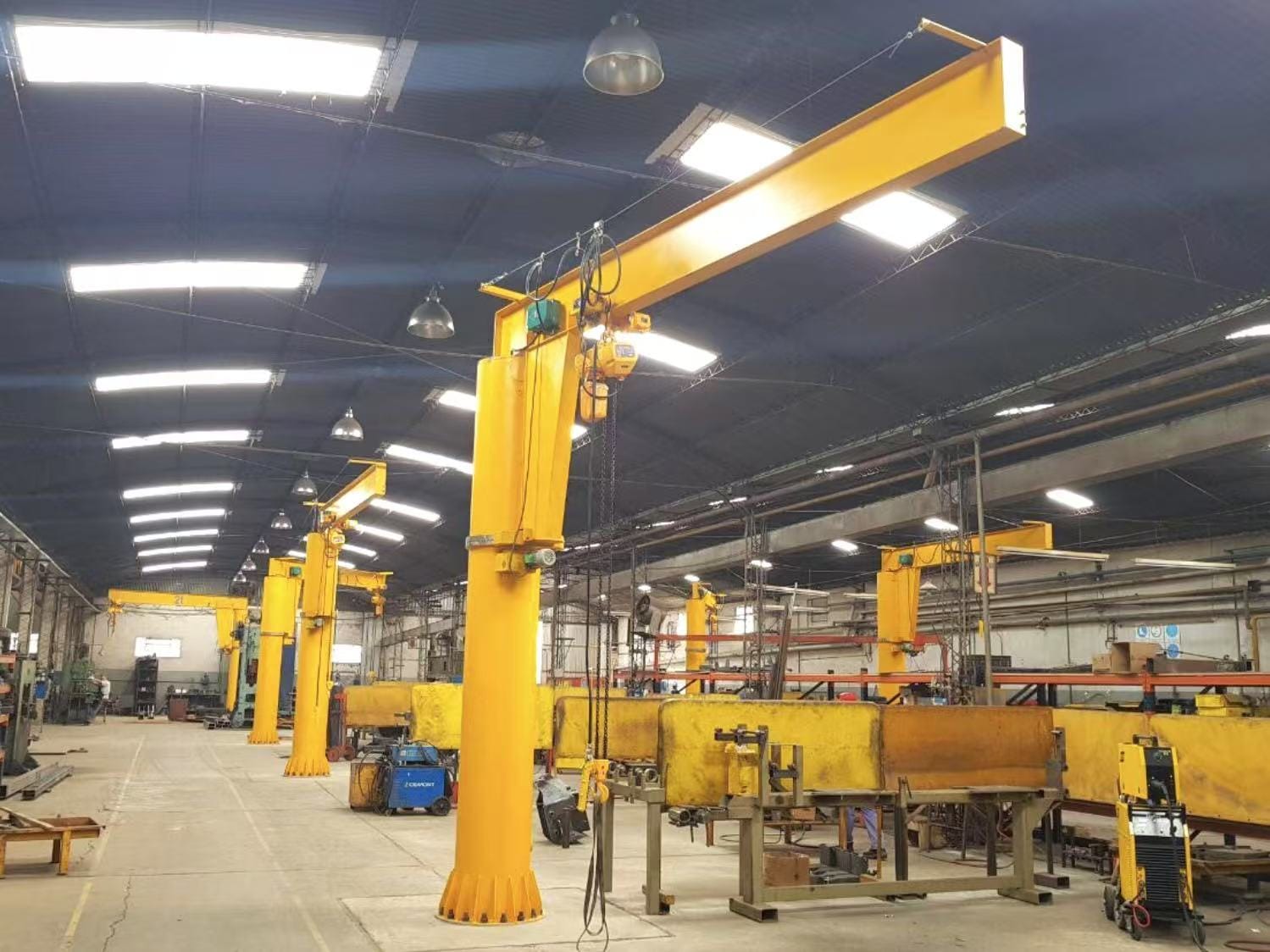

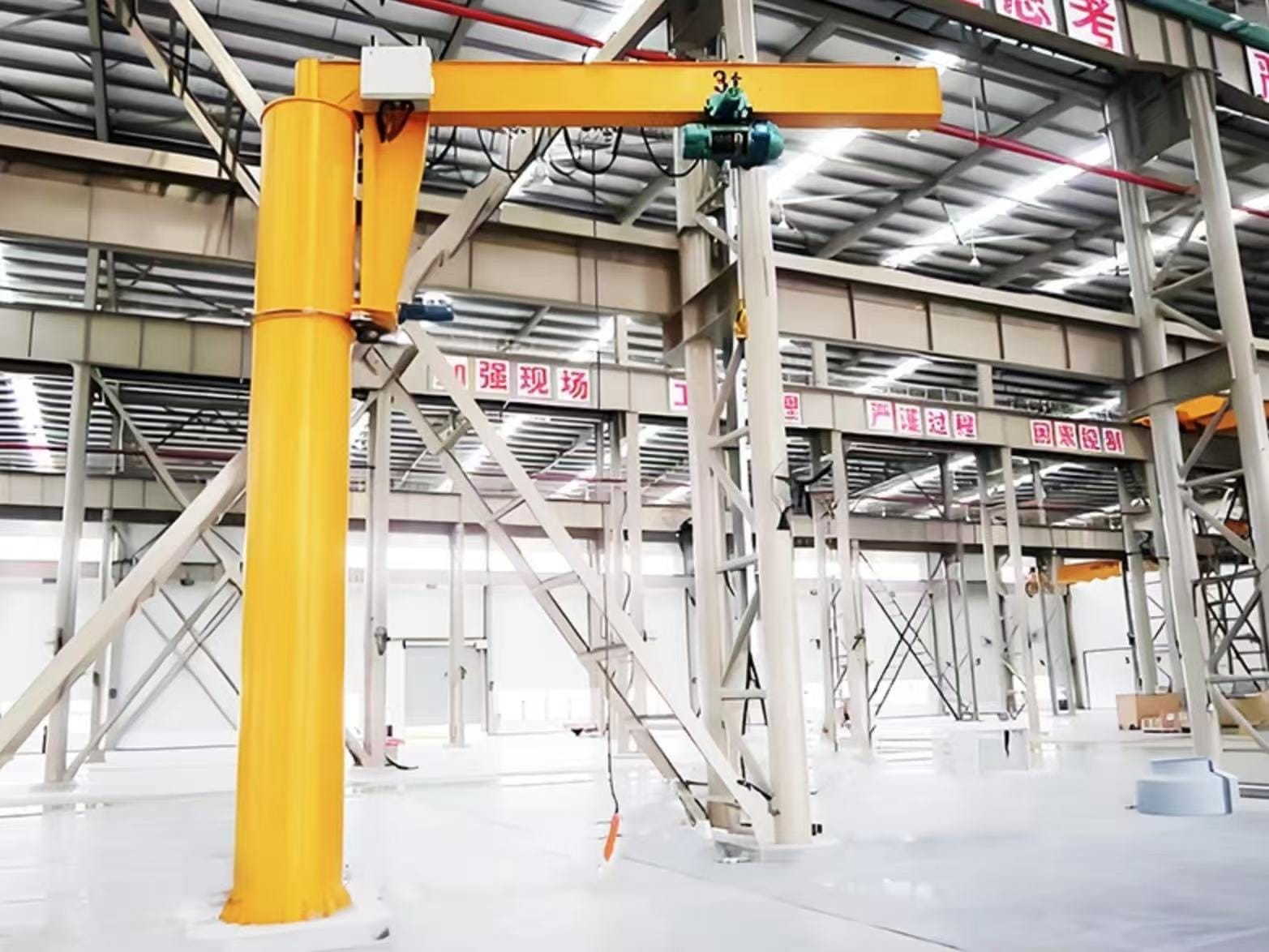

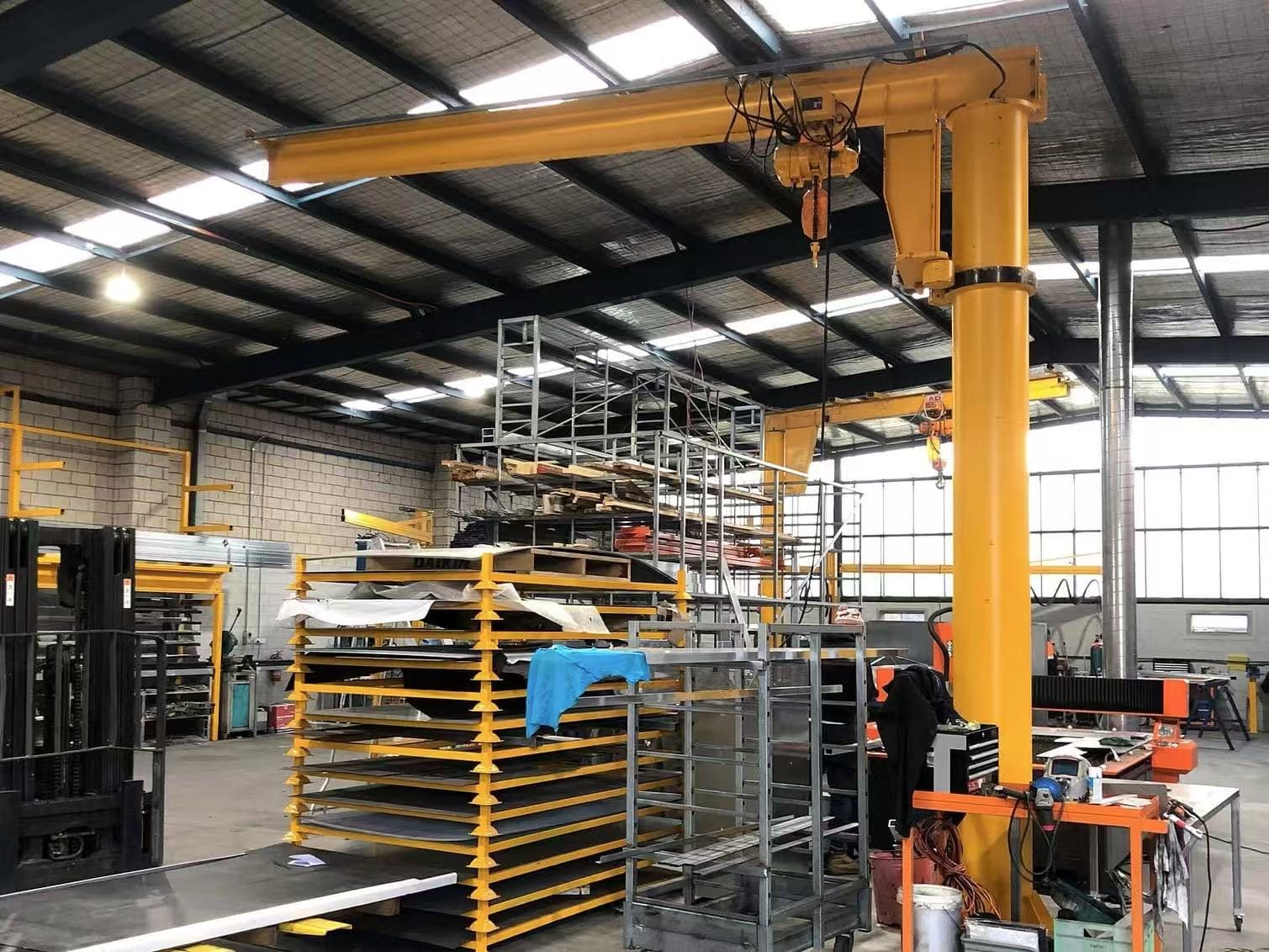

Column-Type Jib Crane
Column-type jib cranes are widely used in the following areas:
Manufacturing Workshops: For handling materials and transferring components on production or assembly lines
Warehousing & Logistics: Efficiently manage the loading, unloading, and stacking of goods
Equipment Maintenance: Assists in the loading and replacement of machine components
Ports & Docks: Supports light lifting and short-distance material transport
Outdoor Work Areas: Ideal for fast lifting operations in mining sites, yards, and open storage areas
Key Features
Intro
The column-type jib crane is a light-duty lifting device designed for short-distance, frequent, and efficient material handling operations. With its compact structure, flexible operation, and high cost-effectiveness, it can be installed in various workplaces such as workshops, warehouses, and docks.
The crane consists of a column, rotating jib arm, drive mechanism, and electric hoist. The column is securely anchored to a concrete foundation using anchor bolts, and the jib arm is driven by a cycloidal gear reducer for smooth rotation. The electric hoist travels along the jib beam to perform lifting tasks.
The jib arm is constructed with a hollow steel structure, offering lightweight performance and high strength. It supports customizable slewing angles of 180°, 270°, or 360°, depending on the specific application needs. The crane supports multiple control options, including pendant button control, wireless remote control, or a combination of both.
Designed based on advanced German technology, this crane represents a new generation of efficient lifting solutions tailored for modern industrial workshops.
advantages
Simple Structure & Easy Installation
Takes up minimal space and does not require complex rail systems; quick to install and start operating.
Flexible Rotation & Wide Coverage
Customizable slewing angles with large working coverage, enhancing efficiency across various tasks.
High-Strength Hollow Steel Arm
Lightweight yet strong structure increases load capacity and reduces overall energy consumption.
Flexible Configuration & Control Options
Compatible with pendant button control, remote control, or both, catering to diverse operational preferences.
Low Maintenance & High Durability
Reliable core components ensure stable performance, low maintenance needs, and long service life.
Faqs
How can I choose right cranes?
We have 24-hour online customer service to provide you with professional consulting services and help you choose the right crane according to your working conditions.
Are your cranes customizable?
Yes, we support customization to meet specific lifting requirements. Factors such as lifting capacity, span length, lifting height, and control options can be tailored to suit your needs of the industry or application. Customization ensures optimal performance and efficiency.
I have low headroom in my workshop, is it possible to install a crane in it?
We have special products for low headroom workshop, our engineer can give the best design according to your dimensions.
What kind of package for Hoist or Cranes?
Hoists and Electricals packed in fumigation wooden box. Main beams covered by woven plastic cloth.
When the main girder is too long, how to delivery by container?
The main girder will be divided into different pieces, each part’s length is within 11.8m. When client receive the goods, just connect them with high strength bolt is okay.
How can you provide after-sale service?
This is a common concern for customers. We provide one-stop service, from delivery, installation to after-sales. We will have online customer service ready to solve your problems at any time, we also provide after-sales documentation support, such as operation manuals, maintenance manuals, etc. If the problem still not be solved, we can send our engineers to your site.
Can we get on-site guided installation service?
Of course, we also have a professional team of technicians responsible for equipment installation and training guidance, and we can provide you with on-site installation and testing guidance.
Related Products
Related products
-
Jib Crane

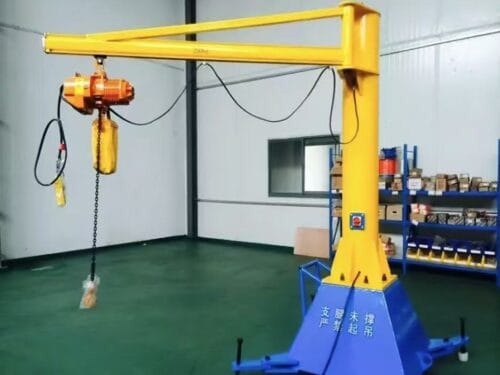

Mobile Jib Crane
-
Jib Crane

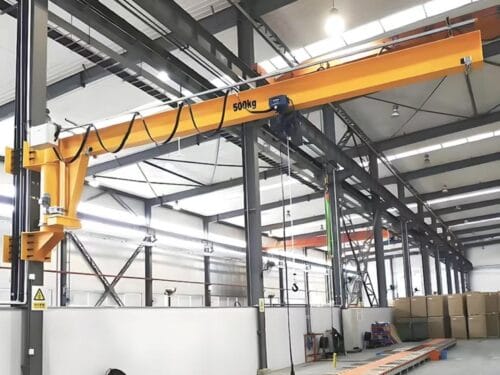

Wall-Mounted Jib Crane
-
Jib Crane

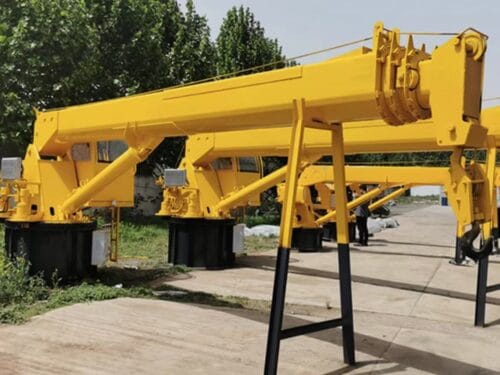

Hydraulic Telescopic Crane
