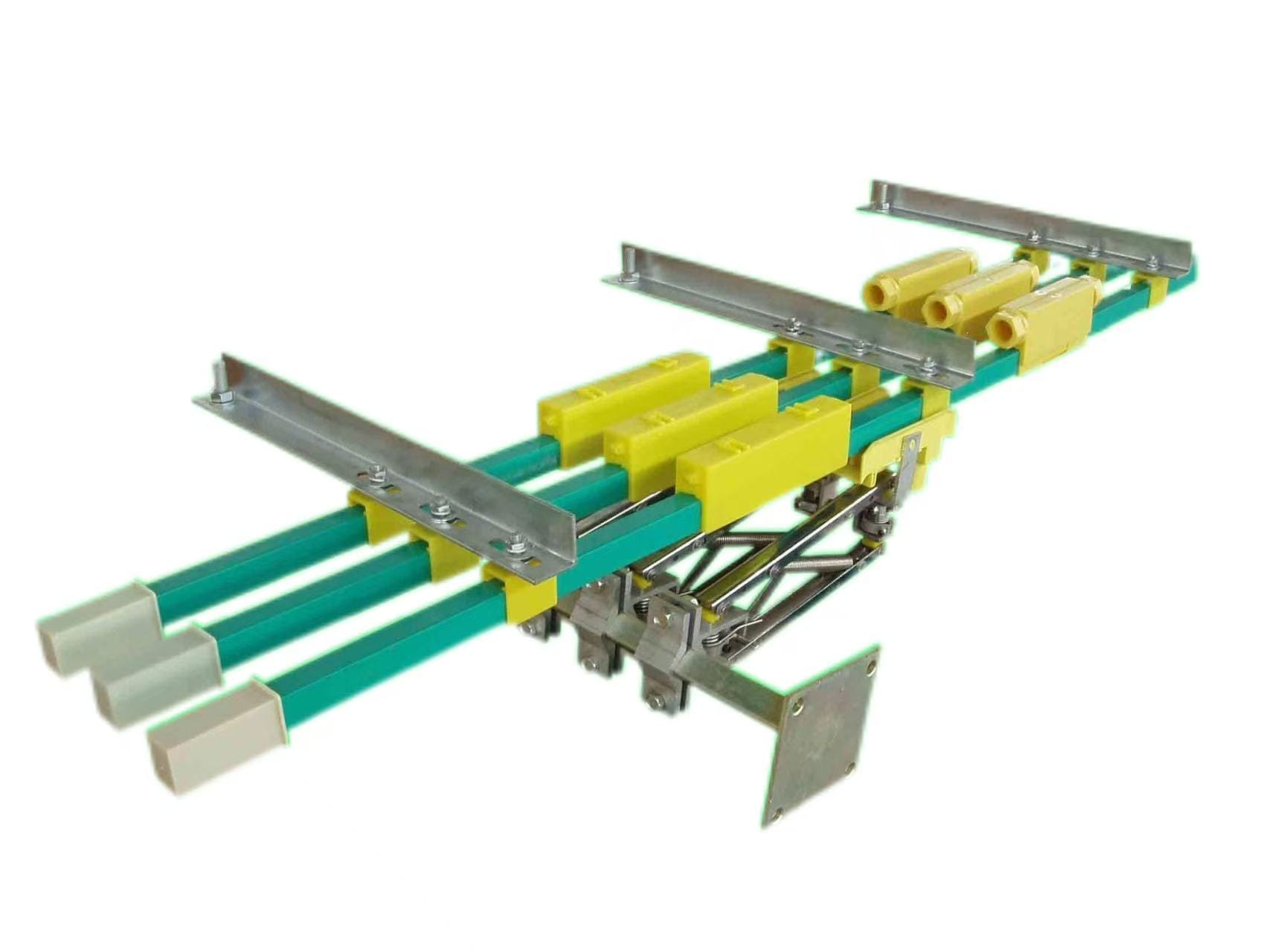

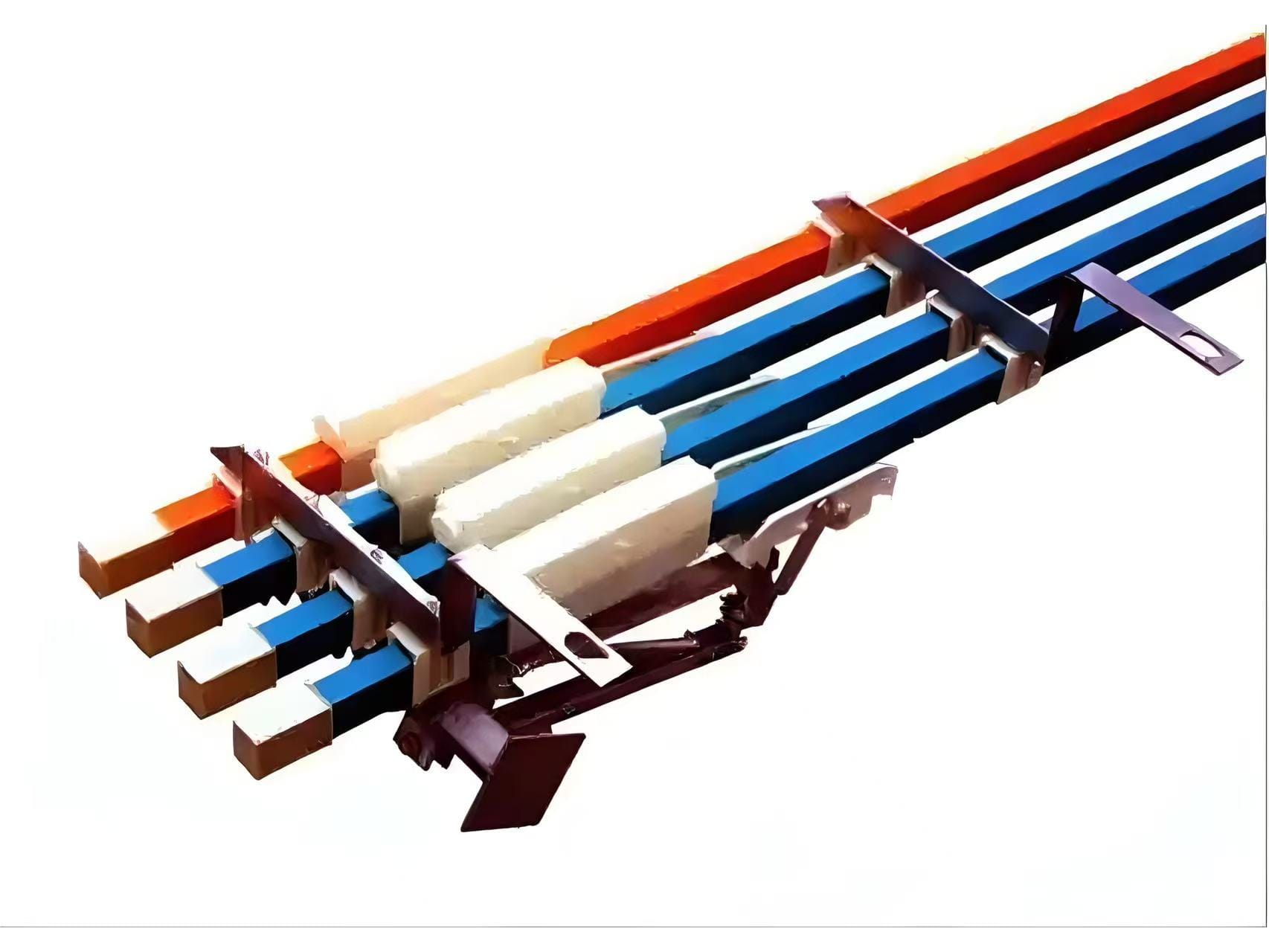

Single-Pole Insulated Conductor Rail
Key Information
Material Options
Aluminum, Copper, Stainless Steel
Structure
Enclosed, single-pole insulated sliding contact rail
Protection Level
Rugged and durable with high environmental adaptability
Rated Current
500A / 800A / 1000A / 1250A (customizable)
Customization:
Tailored designs available to meet specific project needs
Overview、Application
overview
The single-pole insulated conductor rail system is a modern, safe, and efficient power supply solution designed for mobile equipment. It complies with the latest electrical safety regulations and ensures reliable energy transmission while preventing direct contact risks.
The system uses high-performance copper (200A–5000A) or aluminum (150A–3000A) conductors. Aluminum rails are equipped with patented stainless steel contact surfaces to ensure both excellent conductivity and enhanced wear and corrosion resistance.
The conductor rails can be installed vertically or horizontally and support both straight and curved layouts, making them adaptable to various installation conditions. Designed for both indoor and outdoor use, the system offers high-temperature insulation covers (up to +115°C) and low-temperature versions (down to -40°C) for extreme environments. The rails are fully insulated with clearly marked yellow-green grounding strips along their length to enhance operational safety.
application
- Aluminum Conductors: Ideal for cost-sensitive applications where corrosion resistance is not critical, and weight and budget are primary concerns.
- Copper Conductors: Recommended for environments requiring high conductivity and excellent corrosion resistance, such as ports, metallurgy workshops, and electroplating plants.
Faqs
How can I choose right cranes?
We have 24-hour online customer service to provide you with professional consulting services and help you choose the right crane according to your working conditions.
Are your cranes customizable?
Yes, we support customization to meet specific lifting requirements. Factors such as lifting capacity, span length, lifting height, and control options can be tailored to suit your needs of the industry or application. Customization ensures optimal performance and efficiency.
I have low headroom in my workshop, is it possible to install a crane in it?
We have special products for low headroom workshop, our engineer can give the best design according to your dimensions.
What kind of package for Hoist or Cranes?
Hoists and Electricals packed in fumigation wooden box. Main beams covered by woven plastic cloth.
When the main girder is too long, how to delivery by container?
The main girder will be divided into different pieces, each part’s length is within 11.8m. When client receive the goods, just connect them with high strength bolt is okay.
How can you provide after-sale service?
This is a common concern for customers. We provide one-stop service, from delivery, installation to after-sales. We will have online customer service ready to solve your problems at any time, we also provide after-sales documentation support, such as operation manuals, maintenance manuals, etc. If the problem still not be solved, we can send our engineers to your site.
Can we get on-site guided installation service?
Of course, we also have a professional team of technicians responsible for equipment installation and training guidance, and we can provide you with on-site installation and testing guidance.
Related Products
Related products
-
Crane Electrical Equipment
Seamless Conductive Rail
-
Crane Electrical Equipment

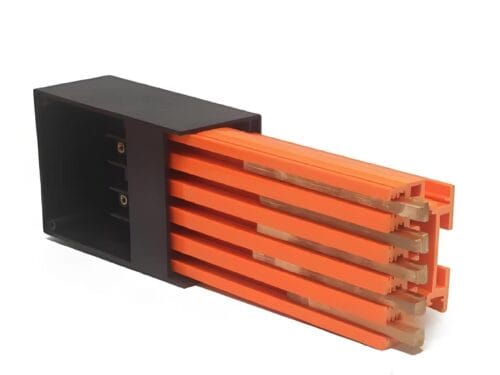

Enclosed Conductor Rail System
-
Crane Electrical Equipment

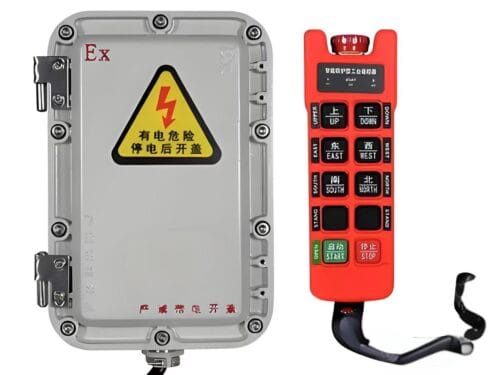

Explosion-Proof Crane Radio Remote Control System
-
Crane Electrical Equipment

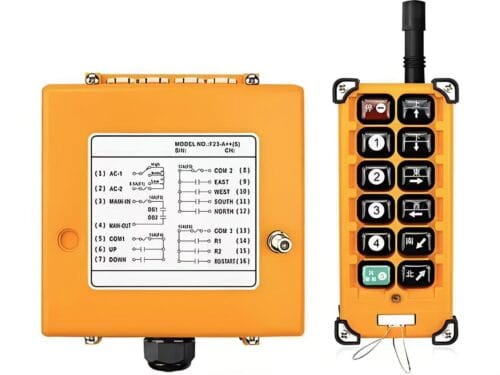

Crane Wireless Radio Remote Control
