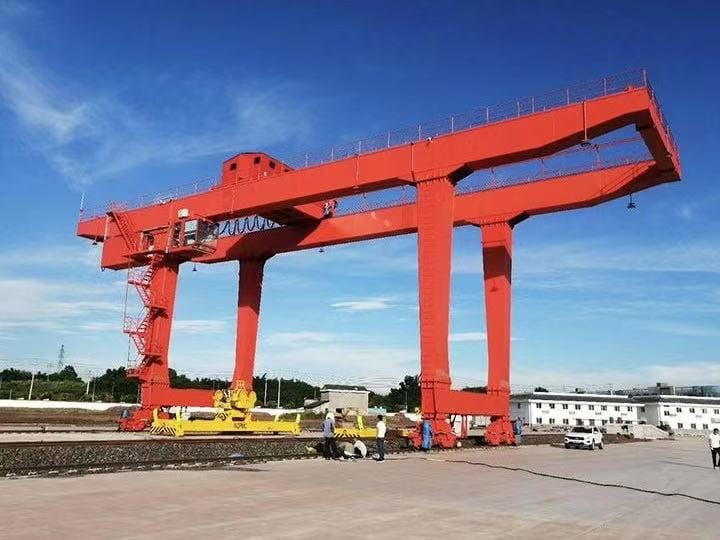

Rail-Mounted Container Gantry Crane
Key Information
Lifting Capacity (under spreader):
40 tons (customizable)
Rail Gauge:
40 meters (customizable)
Lifting Height:
≥18 meters (customizable)
Lifting Speed:
20 m/min (loaded), 40 m/min (unloaded)
Trolley Travel Speed:
80 / 100 m/min (loaded / unloaded)
Crane Travel Speed:
25 m/min
Overview
Rail-Mounted Container Gantry Crane
Widely used in ports, container terminals, railway freight yards, and logistics hubs for the loading and unloading of international standard containers and railway wide containers. Especially suitable for dense stacking and high-frequency handling operations in automated and semi-automated environments, making it a core component in modern container handling systems.
Key Features
Intro
The Rail-Mounted Container Gantry Crane (RMG) is a highly efficient handling system designed for container terminals, yards, and railway intermodal stations. Powered by utility electricity and running on fixed rails, it consists of major components such as the gantry frame, trolley system, main girder, travel mechanisms, power system, and specialized container spreaders.
Designed and manufactured in strict compliance with FEM, DIN, IEC, AWS, and GB standards, this crane ensures superior structural integrity, safety, and intelligent control for heavy-duty operations involving international standard containers and railway wide-body containers.
advantages
- Versatile Configurations
Available in multiple configurations including top-rotating (trolley rotation), bottom-rotating (spreader rotation), cantilever and non-cantilever designs, and railway-specialized models to meet various operational requirements. - Excellent Anti-Sway Performance
Standard with dual-direction flexible damping system; optional with electronic anti-sway and frequency-controlled micro-motion systems. These significantly enhance container stability during handling. - Intelligent Control System
Equipped with a CMS (Crane Management System) for real-time monitoring of equipment status, remote diagnostics, data collection, and maintenance alerts. - Advanced Drive Technology
Features vector frequency conversion, regenerative power feedback, and torque balance control for precise, energy-saving, and efficient operation. - Automated Fault Detection & Monitoring
Integrated smart diagnostics and real-time data display system ensure faster troubleshooting and safer operation. - Multiple Operating Modes
Supports manual, semi-automatic, fully automatic, and remote operation to suit various work scenarios with high flexibility. - Integrated Smart Functions
Includes automatic positioning, intelligent container alignment, optimized trajectory control, and advanced safety interlocks to improve operational automation and precision. - Comprehensive Safety Protections
Equipped with wind alarms, dynamic safety scanning, overload alerts, automatic locking mechanisms, and other features to ensure secure 24/7 operation in demanding environments.
Faqs
How can I choose right cranes?
We have 24-hour online customer service to provide you with professional consulting services and help you choose the right crane according to your working conditions.
Are your cranes customizable?
Yes, we support customization to meet specific lifting requirements. Factors such as lifting capacity, span length, lifting height, and control options can be tailored to suit your needs of the industry or application. Customization ensures optimal performance and efficiency.
I have low headroom in my workshop, is it possible to install a crane in it?
We have special products for low headroom workshop, our engineer can give the best design according to your dimensions.
What kind of package for Hoist or Cranes?
Hoists and Electricals packed in fumigation wooden box. Main beams covered by woven plastic cloth.
When the main girder is too long, how to delivery by container?
The main girder will be divided into different pieces, each part’s length is within 11.8m. When client receive the goods, just connect them with high strength bolt is okay.
How can you provide after-sale service?
This is a common concern for customers. We provide one-stop service, from delivery, installation to after-sales. We will have online customer service ready to solve your problems at any time, we also provide after-sales documentation support, such as operation manuals, maintenance manuals, etc. If the problem still not be solved, we can send our engineers to your site.
Can we get on-site guided installation service?
Of course, we also have a professional team of technicians responsible for equipment installation and training guidance, and we can provide you with on-site installation and testing guidance.
