Rail Clamp
Key Information
Types:

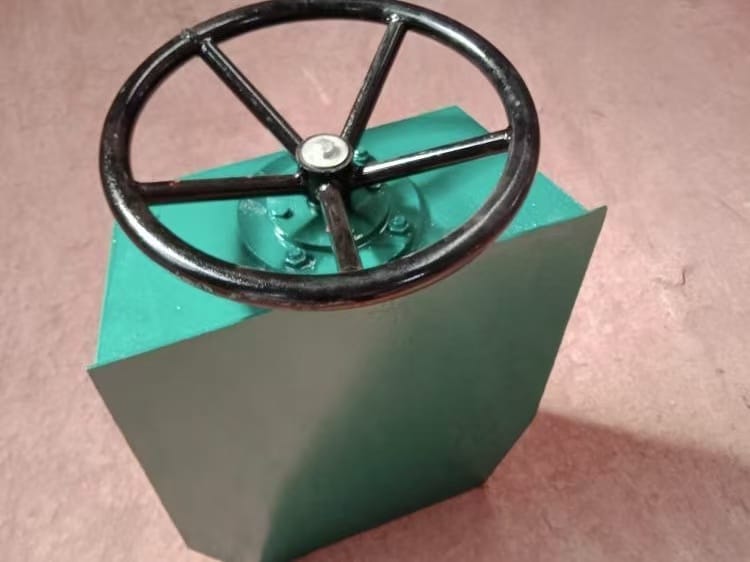

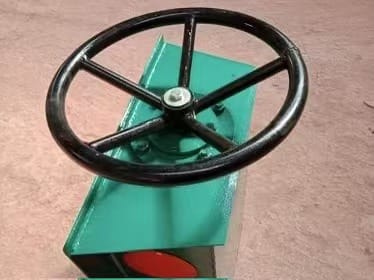

Manual and Electric
Customization
Tailored designs available based on customer requirements
Overview、Application
overview
The rail clamp connects to the crane trolley via a hole at the rear end of the clamp shaft. As the trolley moves, it drags (or pushes) the rail clamp to move synchronously. Under its own weight, the guide wheels roll along a serpentine track, while the guide wheel bracket and clamp shaft enable the entire rail clamp to float smoothly along the fixed axis on the rail surface, ensuring stable operation.

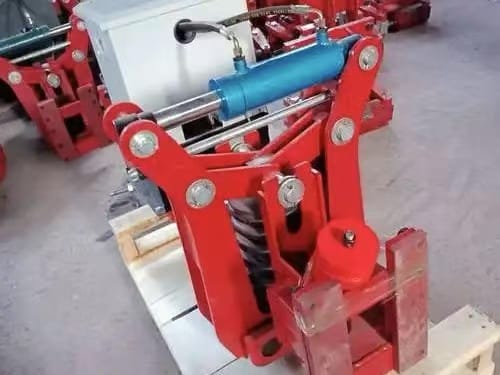

The automatic rail clamp can lock the gantry crane onto the rail, preventing unintended sliding caused by unexpected thrust. It automatically releases during trolley movement and clamps tight in all other states. The system uses Siemens PLC control to automate coordinated actions such as crane travel start/stop, brake engagement/release, and rail clamp opening/clamping—significantly enhancing the stability and safety of the equipment.

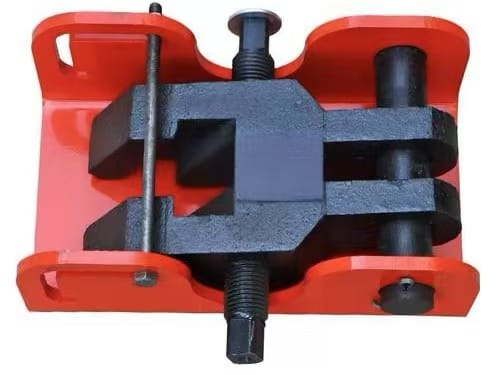

As a critical safety device, the rail clamp prevents outdoor cranes from sliding along rails under strong wind conditions. Typically, clamps fixed to the crane’s base frame grip both sides of the rail head firmly to prevent slipping.
application
Suitable for bridge cranes, gantry cranes, and other lifting equipment requiring rail sliding prevention.
Faqs
How can I choose right cranes?
We have 24-hour online customer service to provide you with professional consulting services and help you choose the right crane according to your working conditions.
Are your cranes customizable?
Yes, we support customization to meet specific lifting requirements. Factors such as lifting capacity, span length, lifting height, and control options can be tailored to suit your needs of the industry or application. Customization ensures optimal performance and efficiency.
I have low headroom in my workshop, is it possible to install a crane in it?
We have special products for low headroom workshop, our engineer can give the best design according to your dimensions.
What kind of package for Hoist or Cranes?
Hoists and Electricals packed in fumigation wooden box. Main beams covered by woven plastic cloth.
When the main girder is too long, how to delivery by container?
The main girder will be divided into different pieces, each part’s length is within 11.8m. When client receive the goods, just connect them with high strength bolt is okay.
How can you provide after-sale service?
This is a common concern for customers. We provide one-stop service, from delivery, installation to after-sales. We will have online customer service ready to solve your problems at any time, we also provide after-sales documentation support, such as operation manuals, maintenance manuals, etc. If the problem still not be solved, we can send our engineers to your site.
Can we get on-site guided installation service?
Of course, we also have a professional team of technicians responsible for equipment installation and training guidance, and we can provide you with on-site installation and testing guidance.
Related Products
Related products
-
Other Crane Accessories

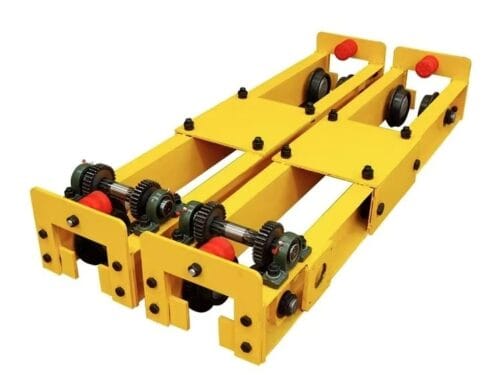

Crane End Beam
-
Other Crane Accessories

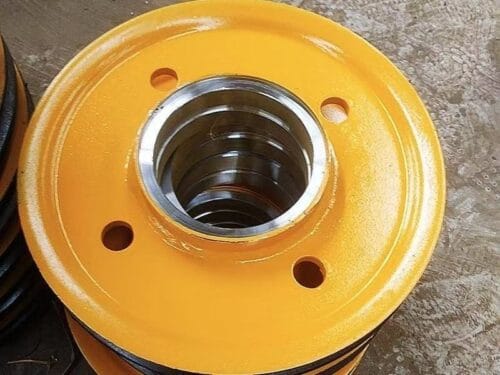

Crane Pulley
-
Other Crane Accessories

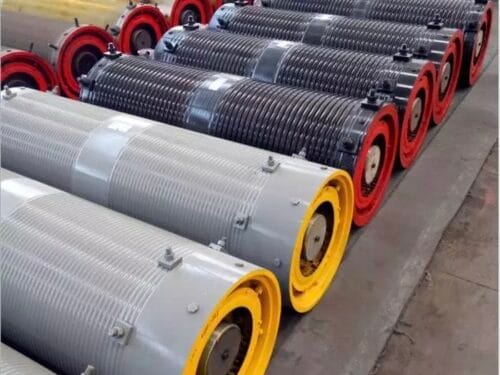

Crane Wire Rope Drum
-
Other Crane Accessories

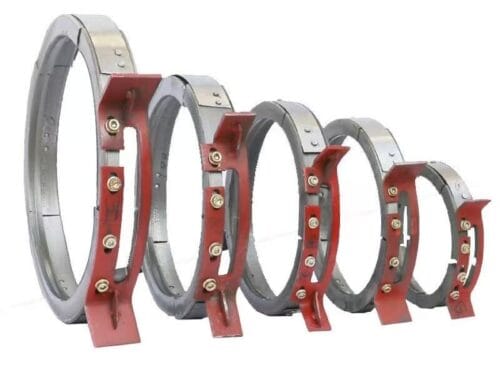

Wire Rope Electric Hoist Rope Guide
