Double Girder Overhead Crane
Key Information
Capacity:
5–32 tons
Span:
10.5–31.5 meters
Lifting Height:
3–50 meters
Working Duty:
A3, A4
Rated Voltage:
220V–690V, 50–60Hz, 3-phase AC
Ambient Temperature:
-25°C to +50°C, Relative Humidity ≤ 85%
Control Mode:
Pendant Control / Remote Control / Cabin Control
Overview

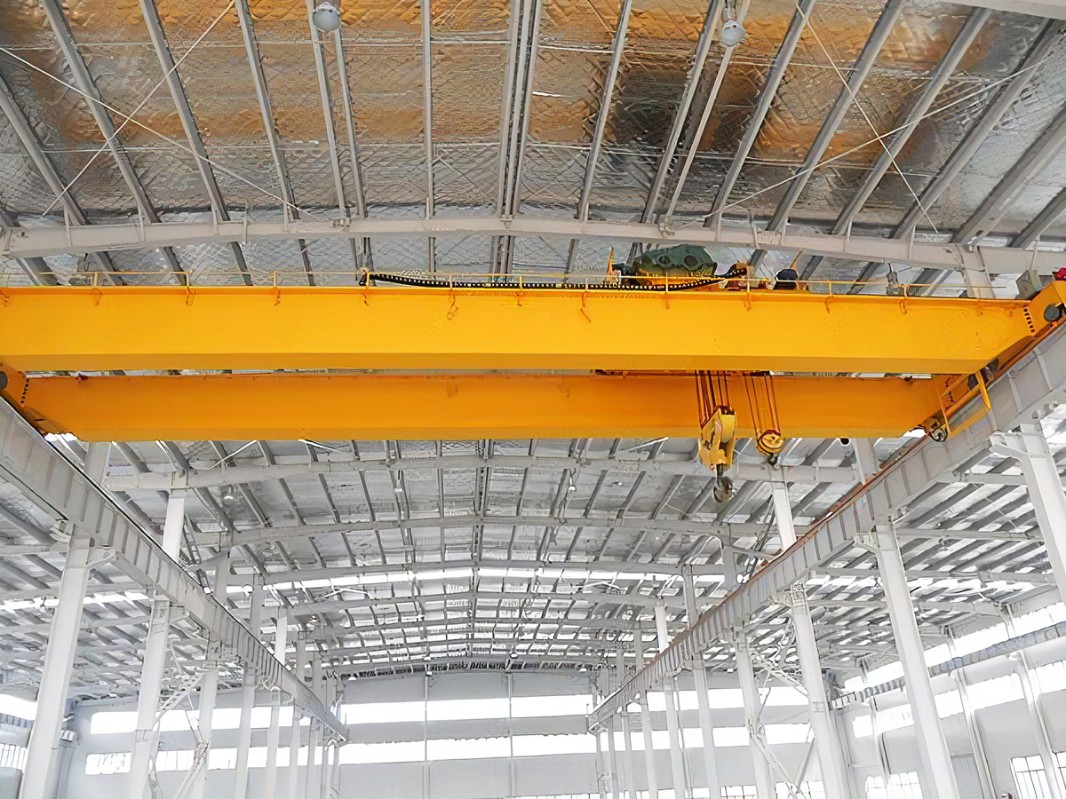

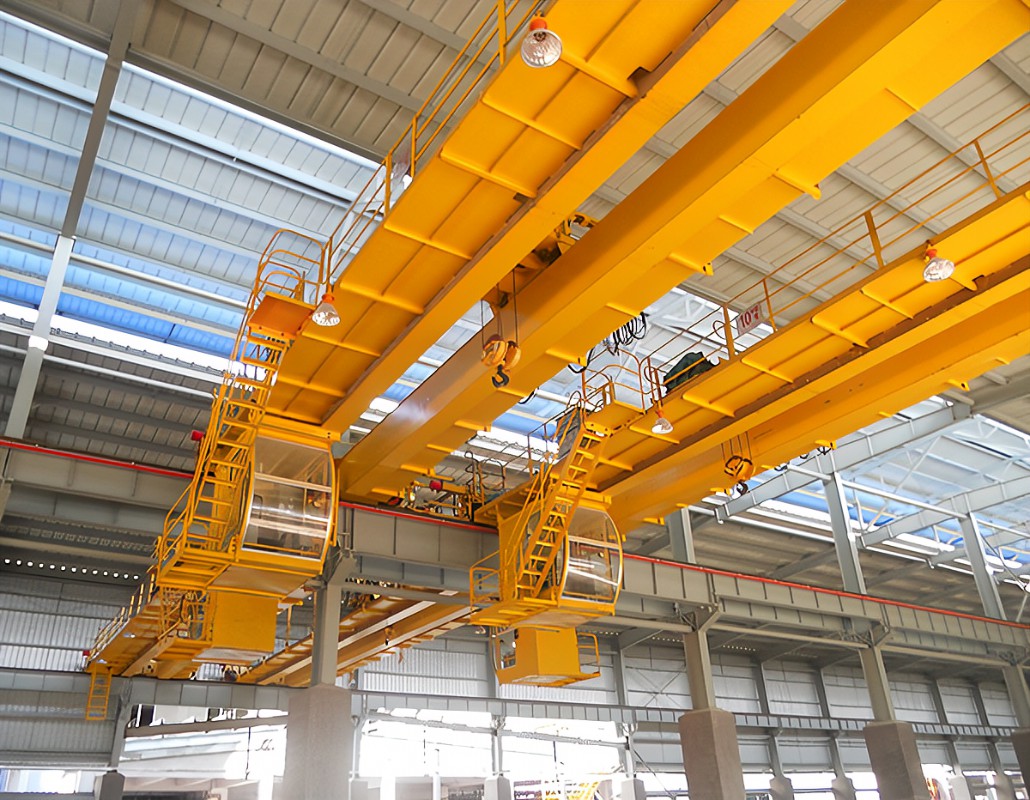

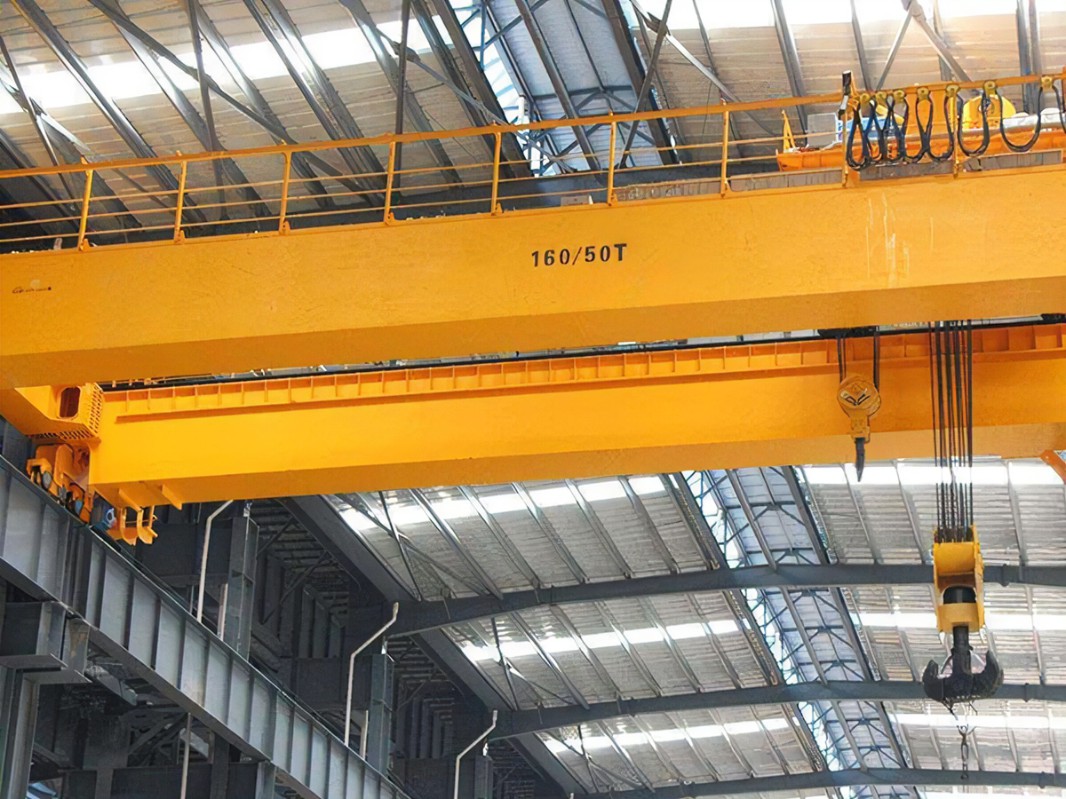

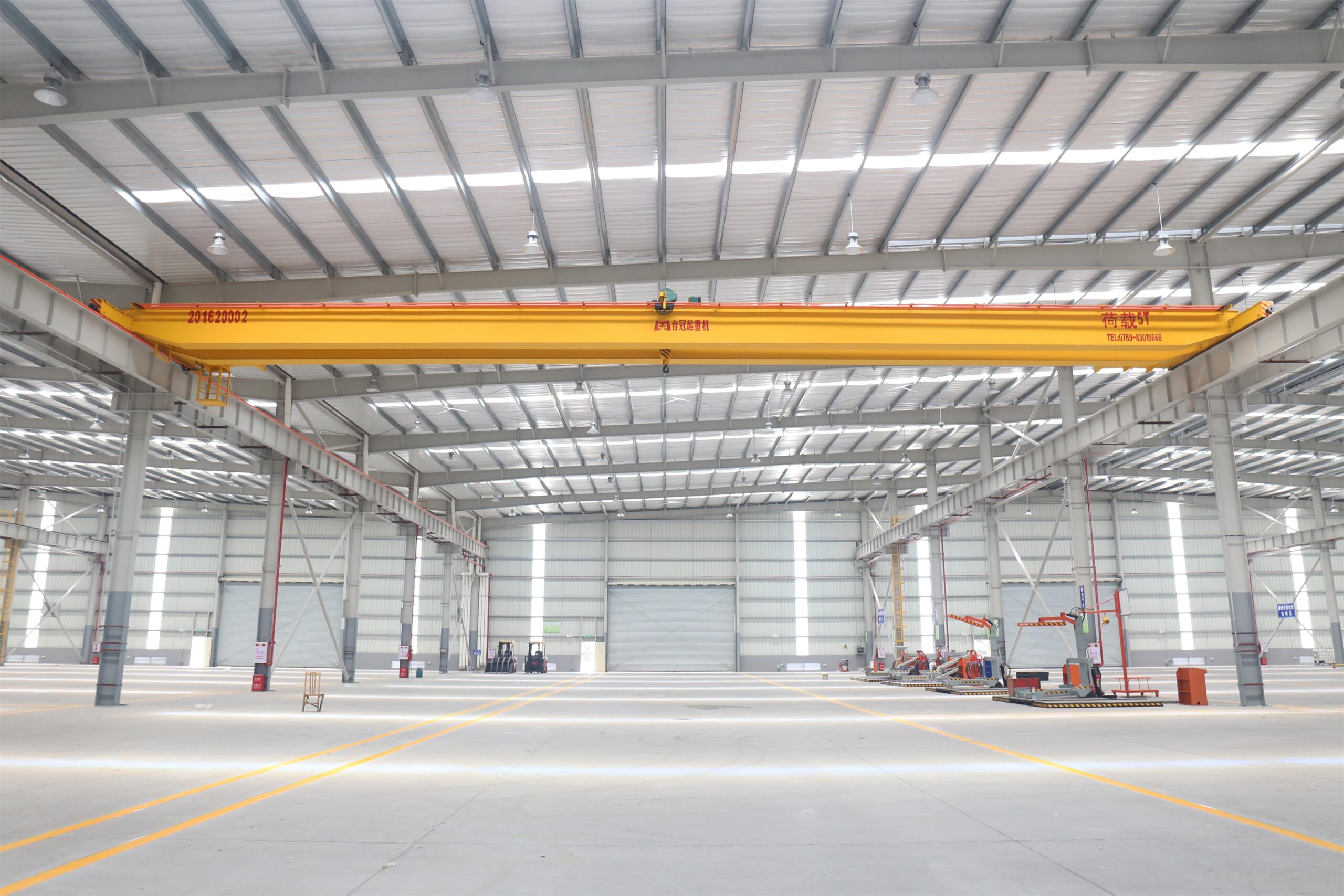

Double Girder Overhead Crane
Double girder overhead cranes are suitable for industries such as metallurgy, building materials, chemical, and coal mining. They are used for loading and unloading bulk materials like ore, slag, coke, coal, sand, and gravel in workshops, warehouses, or fixed-span outdoor areas.
Key Features
Intro
The working principle of a double girder overhead crane is based on mechanical structure and motor drive. When lifting is needed, the operator controls the electrical system to move the trolley and bridge to the designated position. Then, the hoisting mechanism is activated. The motor drives the drum to rotate, winding the wire rope and raising the hook to lift the load.
For horizontal transport, the operator activates the crane and trolley mechanisms, allowing the bridge and trolley to move along the rails in both directions, achieving smooth material handling.
Double girder overhead cranes are widely used in industrial workshops, warehouses, ports, and other locations, especially in heavy-duty lifting and handling tasks.
For example:
-
In steel plants, they are used to lift and transport heavy materials like ingots and steel plates.
-
In ports and terminals, they handle containers and cargo.
-
In power plants, chemical factories, and paper mills, these cranes also play a vital role.
advantages
-
Lightweight design, low wheel pressure, low clearance — effectively reduces building costs
-
Small hook limit, large working area, wide coverage
-
Fewer transmission links, high efficiency, fewer failure points
-
High-quality components, low maintenance, long service life
-
Variable frequency drive for smooth starting and braking; safe and user-friendly
-
Low overall power consumption, energy-efficient
-
Multiple options available: anti-sway hook, dual brakes, etc.
-
New materials and processes, crafted with precision based on advanced production capabilities
Faqs
How can I choose right cranes?
We have 24-hour online customer service to provide you with professional consulting services and help you choose the right crane according to your working conditions.
Are your cranes customizable?
Yes, we support customization to meet specific lifting requirements. Factors such as lifting capacity, span length, lifting height, and control options can be tailored to suit your needs of the industry or application. Customization ensures optimal performance and efficiency.
I have low headroom in my workshop, is it possible to install a crane in it?
We have special products for low headroom workshop, our engineer can give the best design according to your dimensions.
What kind of package for Hoist or Cranes?
Hoists and Electricals packed in fumigation wooden box. Main beams covered by woven plastic cloth.
When the main girder is too long, how to delivery by container?
The main girder will be divided into different pieces, each part’s length is within 11.8m. When client receive the goods, just connect them with high strength bolt is okay.
How can you provide after-sale service?
This is a common concern for customers. We provide one-stop service, from delivery, installation to after-sales. We will have online customer service ready to solve your problems at any time, we also provide after-sales documentation support, such as operation manuals, maintenance manuals, etc. If the problem still not be solved, we can send our engineers to your site.
Can we get on-site guided installation service?
Of course, we also have a professional team of technicians responsible for equipment installation and training guidance, and we can provide you with on-site installation and testing guidance.
