Bridge Girder Erection Machine
Key Information
Lifting Capacity
60–200 tons
Applicable Span
30–50 meters
Bridge Inclination Angle
0–45°
Overview

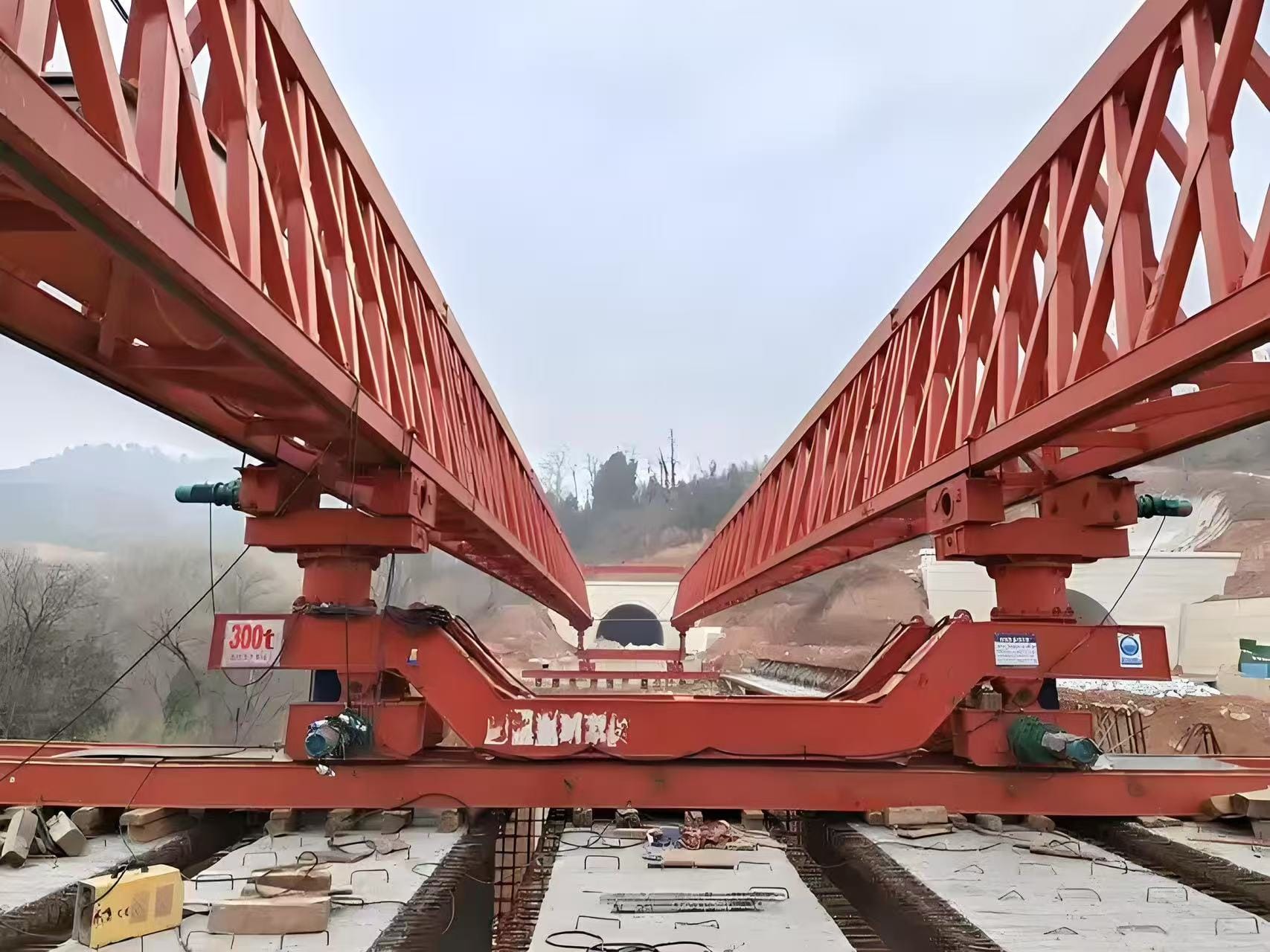

Bridge Girder Erection Machine
The Bridge Girder Erection Machine is a heavy-duty lifting equipment specially designed for bridge construction. It features high load capacity, precise operation, and strong structural performance, making it ideal for lifting and installing precast bridge girders. The system includes a main beam, front and rear support legs, electric trolley, electrical control system, and auxiliary components. With powerful drive and adaptable structure, it ensures safe and efficient beam erection across diverse bridge projects.
Key Features
Intro
- Highway Bridge Construction
Ideal for lifting precast girders on expressways, national roads, and provincial highways, ensuring efficient and safe bridge assembly. - Railway Bridge Projects
Suitable for high-speed rail, intercity rail, and standard railway bridge construction, supporting fast and accurate installation of large segments. - Urban Rail Transit
Provides effective girder handling solutions for metro and light rail projects, especially where working space is limited and timelines are tight. - Hydraulic & Long-Span Bridge Projects
Capable of working in complex environments like river, lake, or sea crossings, handling long-span girders with high precision and strength.
advantages
- High Load Capacity & Structural Stability
- Designed to lift heavy precast beam segments with high stability, ensuring safe operation even in complex site conditions.
- Precision & High Work Efficiency
- Equipped with frequency conversion control and precision positioning systems, allowing smooth acceleration, precise girder placement, and enhanced construction quality.
- Strong Adaptability
- The main beam and support legs can be adjusted to suit different terrains, pier heights, and span widths, making it suitable for a wide range of construction environments.
- Comprehensive Safety Systems
- Integrated with overload protection, limit switches, emergency stop functions, and other safety devices to ensure safe operation and reduce risk of accidents.
- Modular Design for Easy Maintenance
- Modular component structure allows for easy transportation, fast assembly/disassembly, and low maintenance costs.
Faqs
How can I choose right cranes?
We have 24-hour online customer service to provide you with professional consulting services and help you choose the right crane according to your working conditions.
Are your cranes customizable?
Yes, we support customization to meet specific lifting requirements. Factors such as lifting capacity, span length, lifting height, and control options can be tailored to suit your needs of the industry or application. Customization ensures optimal performance and efficiency.
I have low headroom in my workshop, is it possible to install a crane in it?
We have special products for low headroom workshop, our engineer can give the best design according to your dimensions.
What kind of package for Hoist or Cranes?
Hoists and Electricals packed in fumigation wooden box. Main beams covered by woven plastic cloth.
When the main girder is too long, how to delivery by container?
The main girder will be divided into different pieces, each part’s length is within 11.8m. When client receive the goods, just connect them with high strength bolt is okay.
How can you provide after-sale service?
This is a common concern for customers. We provide one-stop service, from delivery, installation to after-sales. We will have online customer service ready to solve your problems at any time, we also provide after-sales documentation support, such as operation manuals, maintenance manuals, etc. If the problem still not be solved, we can send our engineers to your site.
Can we get on-site guided installation service?
Of course, we also have a professional team of technicians responsible for equipment installation and training guidance, and we can provide you with on-site installation and testing guidance.
Related Products
Related products
-
Bridge Equipment

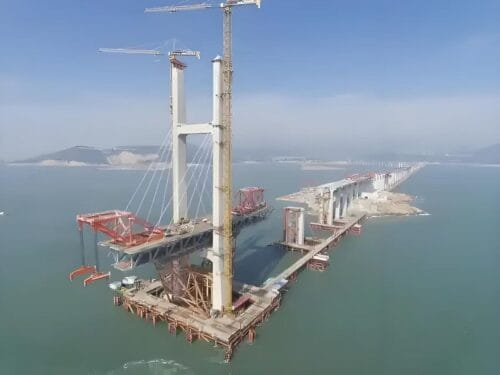

Bridge Deck Lifter
-
Bridge Equipment

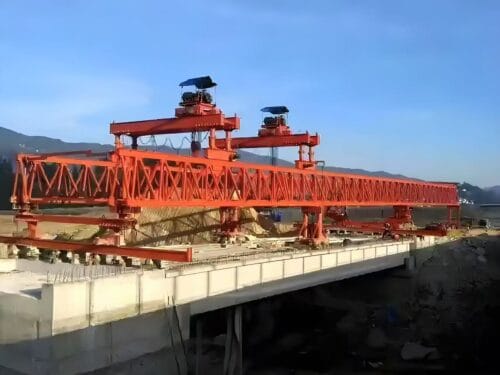

Movable Scaffolding System
-
Bridge Equipment

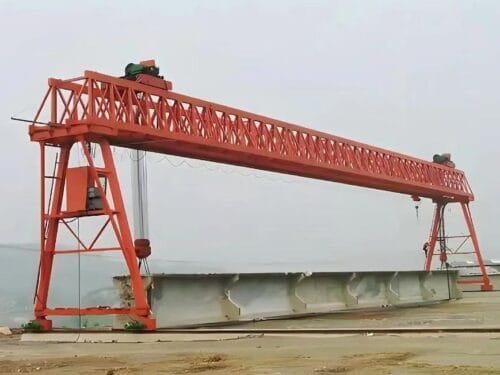

Beam Lifting Gantry Crane
