Crane Product Introduction: Efficient and Safe Industrial Handling Solutions

Crane Product Introduction: Efficient and Safe Industrial Handling Solutions

In modern industrial production and material handling, lifting equipment plays a crucial role. Whether in manufacturing workshops, warehousing and logistics, or construction sites and ports, choosing the right crane products can significantly improve operational efficiency and ensure production safety. Our company specializes in providing three categories of high-performance lifting equipment: Electric Hoists, Overhead Cranes, and Gantry Cranes, offering reliable support for various lifting needs.

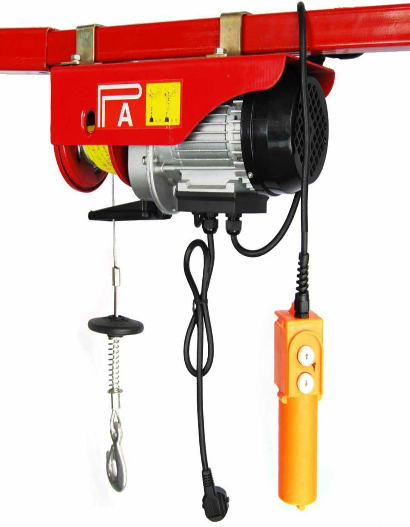

1. Electric Hoists: Compact and Flexible Lifting Devices

Electric hoists are compact, easy-to-operate light-duty lifting devices widely used in warehouses, workshops, and assembly lines.

Key Features:

High efficiency: motor-driven for fast lifting speed, saving labor;
Compact and lightweight: easy to install on rails, single-girder cranes, or jib cranes;
Dual braking system: equipped with electromagnetic and mechanical brakes to ensure lifting safety;
Various models available: wire rope and chain electric hoists to meet different load requirements (0.5 tons to 20 tons).

Typical Applications:

Material transfer on production lines;
Mold and equipment assembly;
Lifting operations in confined spaces.

Specifications (Common Models):

Parameter	Range	Description
Rated Load	0.5 tons – 20 tons	Suitable for different loads
Lifting Height	3m – 30m	Customized based on space
Lifting Speed	0.5 m/s – 12 m/s	Single or dual speed option
Traveling Speed	20 m/min – 60 m/min	Speed of trolley or rail
Power Supply	380V/50Hz 3-phase AC	Standard industrial power
Brake Type	Electromagnetic + Mechanical	Enhanced safety

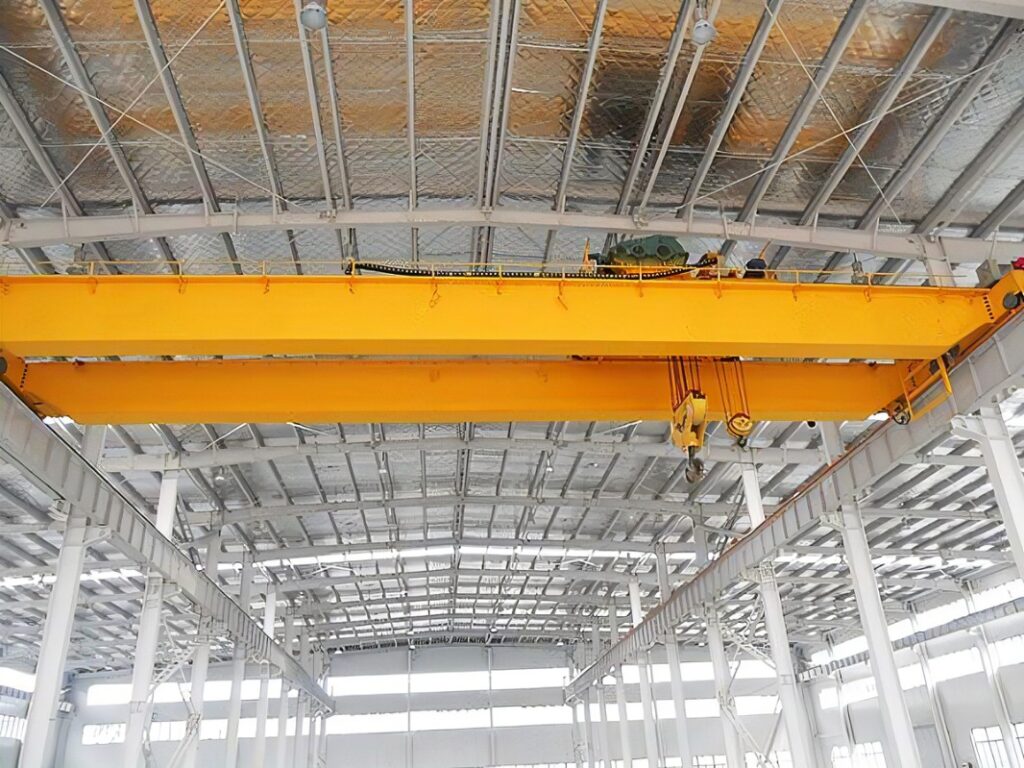

2. Overhead Cranes: Backbone of Indoor Material Handling

Overhead cranes, also known as bridge cranes, are installed on rails along the sides of workshops. They are ideal for lifting heavy loads over large spans and are indispensable in industrial production.

Key Features:

Stable structure: consists of main beam, end beams, trolley, and electric hoist for smooth operation;
Wide coverage: capable of transporting materials across the entire workshop;
Flexible configurations: available in single-girder or double-girder types, supporting load capacities from 1 ton to over 100 tons;
Automation options: supports remote control, variable frequency drive, and PLC integration.

Typical Applications:

Metal processing and machinery manufacturing;
Mold workshops and large equipment assembly;
High-frequency operations in warehousing and logistics centers.

Specifications (Common Models):

Parameter	Range	Description
Rated Load	3 tons – 100 tons	Suitable for various industrial needs
Span	10m – 35m	Customized according to workshop width
Lifting Height	6m – 30m	Meets different ceiling heights
Trolley Speed	20 m/min – 60 m/min	Horizontal movement speed of hook
Bridge Travel Speed	20 m/min – 45 m/min	Movement speed of entire bridge
Power Supply	380V/50Hz 3-phase AC	Standard industrial power

3. Gantry Cranes: Ideal for Heavy Outdoor Lifting

Gantry cranes are a variant of overhead cranes designed mainly for outdoor use such as open yards, ports, and railway freight stations. Their gate-like structure offers excellent stability and heavy load capacity.

Key Features:

Easy installation without the need for factory building support;
High load capacity, suitable for heavy lifting tasks (standard models up to 200 tons);
Wind- and rain-resistant design for various outdoor environments;
Diverse models including full gantry, semi-gantry, single-girder, and double-girder types.

Typical Applications:

Outdoor material yard handling;
Container loading/unloading and logistics;
Hydropower projects and bridge construction sites.

Specifications (Common Models):

Parameter	Range	Description
Rated Load	5 tons – 200 tons	Suitable for heavy lifting tasks
Span	15m – 50m	Suitable for large outdoor work areas
Lifting Height	6m – 30m	Meets various lifting heights
Trolley Speed	20 m/min – 50 m/min	Horizontal hook movement speed
Gantry Travel Speed	15 m/min – 40 m/min	Movement speed of the gantry
Power Supply	380V/50Hz 3-phase AC	Standard industrial power

Customized Solutions to Meet Diverse Needs

We are committed to providing full-range lifting solutions, from light to heavy loads, indoor to outdoor, standard to custom designs. Whether you need flexible and efficient electric hoists or stable and durable overhead and gantry cranes, we offer high-performance, safe, and compliant products to support your business operations effectively.
